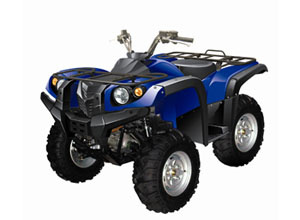

Home Zhejiang Yutai Scooters Co., Ltd. 600 ATV (ATV 600-1)
Specifications
| Prod Model: | ATV 600-1 |
|---|
Product Description
ENGINEType 608cc, Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore x Stroke 96mm x 84mm
Compression Ratio 8.8: 1
Max. Power 22.0kw/5000rpm, 29.5HP
Max. Torque 49.0N. M/5500rpm
Carburetion PD42J
Ignition CDI
Starting Electric/pull start
Transmission L-H-N-R-P
Drive Train Axle
CHASSIS
Suspension/Front Independent double swing arm
Suspension/Rear Independent double swing arm
Brakes/Front Dual ventilated hydraulic disc
Brakes/Rear Ventilated hydraulic disc
Tires/Front AT23 x 8-12 radial
Tires/Rear AT23 x 10-12 radial
DIMENSIONS
L x W x H 2120mm x 1170mm x 1270mm
Seat Height 870mm
Wheelbase 1365mm
Ground Clearance 260mm
Fuel Capatity 17L
Dry Weight 319kg
Loading Quantity 8pcs/20'GP; 18pcs/40'GP; 27pcs/40'HQ
