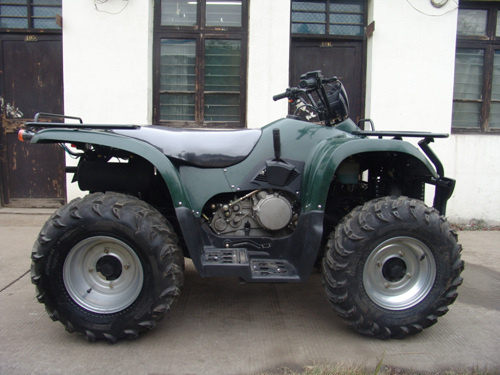

Home Zhejiang Yutai Scooters Co., Ltd. 500cc ATV EEC (ATV 500-2)
Specifications
| Prod Model: | ATV 500-2 |
|---|
Product Description
2WD/4WD adjustable by electric switch4 wheels independent suspension
Japanese imported caburetor, easy starting in snowing area.
4 wheels disc brake.
LH hand brake stop the front wheels.
RH hand brake stop the rear wheels.
Foot brake stop the 4 wheels.
Shaft drive.
Big radiator.
Engine: 4 strokes, water- cool, CTV Fully Auto
Cylinder: Single cylinder
Lubrication: Pressure splash
Cylinder Bore Diamiter: 92mm(3.63")
Piston Stroke: 75mm(2.96")
Displacement: 498.6cm3
Compression Ratio: 10.2: 1
Carburetor: Single Chanber
Transmission: CVT Fully Auto w/Belt
Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear)
Max Power: 24 kw / 6800r / min
Max Torge: 38 N. M / 5000r /min
L x W x H: 2020mm x 1160mm x 1170mm
Weight: 330kg
Brake: Front + Rear Disc Brake
