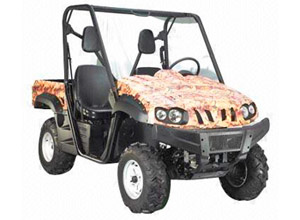

700CC UTV (UTV700-1)

Specifications

Prod Model:	UTV700-1

Product Description

ENGINE
Type 686cc, Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore x Stroke 102mm x 84mm
Compression Ratio 9.2: 1
Max. Power 13.0kw/5500rpm, 17.5HP
Max. Torque 23.5N. M/4500rpm
Carburetion PD42J-A
Ignition CDI
Starting Electric
Transmission L-H-N-R-P
Drive Train Axle
CHASSIS
Suspension/Front Independent double swing arm
Suspension/Rear Independent double swing arm
Brakes/Front Dual ventilated hydraulic disc
Brakes/Rear Ventilated hydraulic disc
Tires/Front AT25 x 8-12 radial
Tires/Rear AT25 x 10-12 radial
DIMENSIONS
L x W x H 3010mm x 1460mm x 1840mm
Seat Height 790mm
Wheelbase 1890mm
Ground Clearance 245mm
Fuel Capatity 29L
Dry Weight 524kg
Loading Quantity 4pcs/20'GP; 9pcs/40'GP; 18pcs/40'HQ
