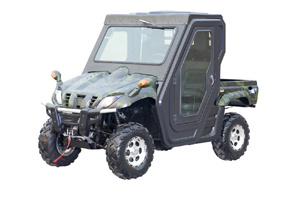

400CC UTV with Door

Specifications

Prod Model:	UTV 400

Product Description

SPECIFICATIONS:
Colors available: Red/blue/army green/maple/camo/dark/green/black
Features: Shaft drive; 4x4 WHEELER FORCE; Gear by electricity,
F/R: INDEPENDENCE

ENGINE INFO
Engine type: 4-Stroke, single cylinder
Displacement: *359.1
Cooling: Air+oil cooled
Max horsepower: *16HORE
Max torque: *23N. M/4000rpm
Bore*stroke: *78.5x74.2mm
Max speed: * 80 km/h
Climbing ability: *40Degree
Ignition: C. D. I
Starting system: Electric/kick/pull start
Battery: *12V-14Ah
Engine oil: *15W-40
Gear oil: *15W-40

CHASSIS ETC.
Transmission: Semi-automatic
Driveline: Shaft
Driving wheel: 4WHEELER FORCE+2 WHEELER FORCE
Suspension, front/rear: F/R: INDEPENDENCE
Brakes, front/rear: F/R: DISC
Tires, front/rear: F: AT25x8-12
R: AT25 10-12
Fuel capacity/type: 27L
G. W. /N. W.: 420kg / 380kg
Max load: 300kg

DIMENSIONS
Wheelbase: 1900mm
OA L*W*H: 2850x1560X1880mm
Height to seat: 850mm
Min ground clearance: 285mm
Carton size: 3000x1760x1400mm
Shipping info: 8pcs/40HQ
