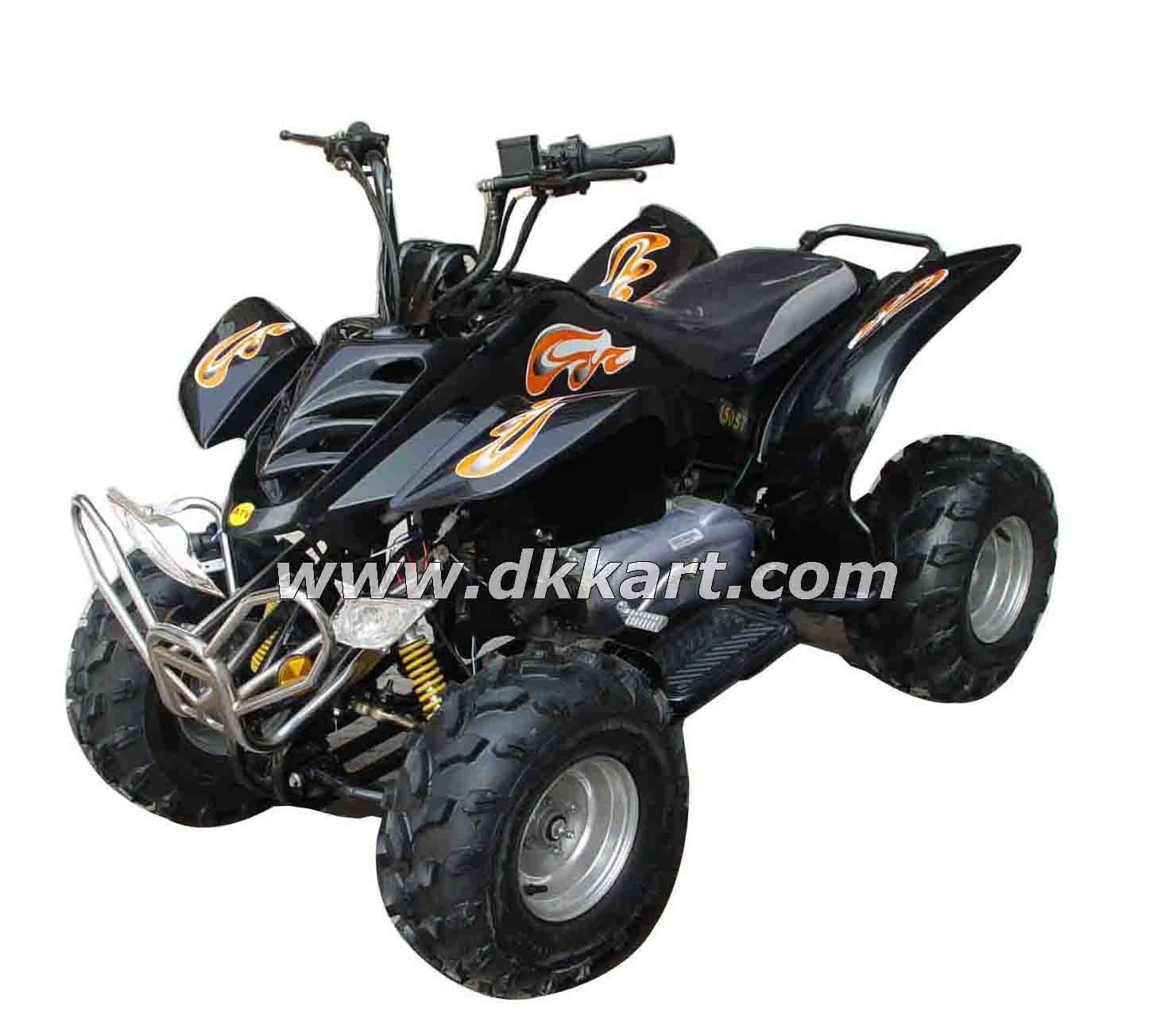

ZC-ATV-03 (110cc,125cc,150cc,200cc,250cc)

Specifications

Prod Model:	110cc,125cc,150cc,200cc,250cc

Product Description

Overall Dimension (L*W*H): 1510mm*950mm*1010mm
Proper Mass of Empty Vehicle: 135kg
Distance Between axles: 1010mm
Distance between front wheels: 650mm
Distance between rear wheels: 670mm
Ground clearance: 150mm
Max speed: >=45km/h
Climbing Abilty: >=15
Specification of Front Wheel: 19*7-8, 30kpa
Specification of Rear wheel: 18*95-10, 25kpa
Type of Engine: Ip52QMI
Bore*stroke: 52. 4mm*39. 2mm
Efficient capacity: 124. 6ml
Rated power and rotate speed: 5. 2KW/7000r/min
Max Torque and Rotate speed: 5. 6N. m/6500r/min
Compressing ratio: 9:1:1
Gearshift Mode: stepless variable speed
Starting system: electric and kick-back starting
Cooling system: strong air cooled
Tank fuel capacity: 7. 5L
CartON size: 1480*810*910mm
Gross weight: 155kg
Quantity/20GP/40GP: 30pcs/20GP 60cps/40Gp
Displacement: 125cc/4stroke
