Specifications

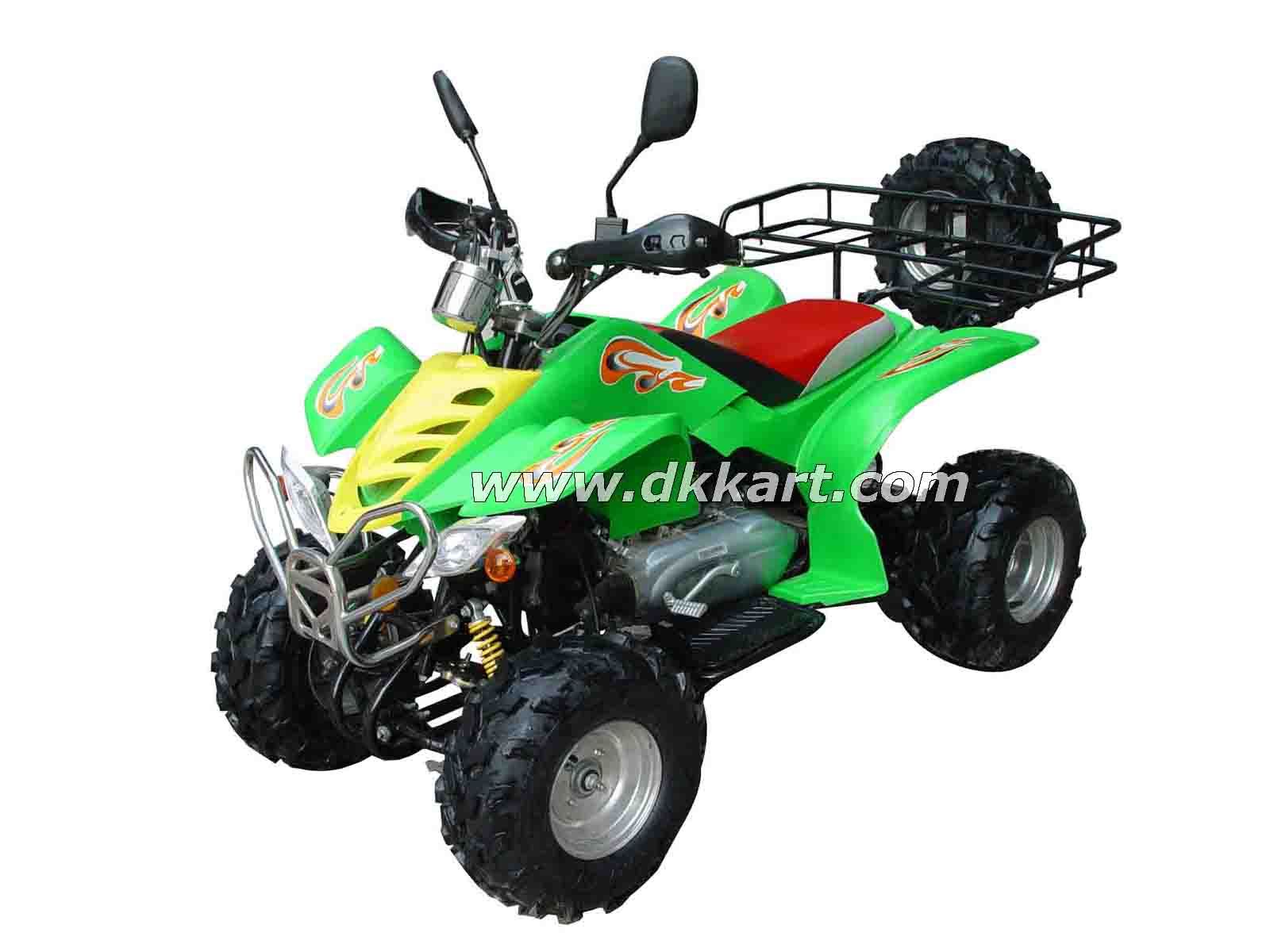

| Prod Model: | ZC-ATV-09 |
|---|
Product Description
Overall Dimension L*W*H: 1510mm*950mm*1010mm/Climbing Ability: ≥15/
Specification of Front Wheel: 19*7-8, 30Kpa/
Specification of Rear Wheel: 18*9.5-10, 25Kpa/
Bore*stroke: 52.4mm*39.2mm/
Efficient Capacity: 124.6ml/
Rated Power and Rotate Speed: 5.2KW/7000r/min/
Max Torque and Rotate Speed: 5.6N.m/6500r/min/
Compressing Ratio: 9.1:1/
Starting System: Electric and kick-back starting/
Cooling System: strong air cooled/ Tank fuel capacity: 7.5L/
CARTON SIZE :1480*810*910MM/
Gross weight: 155KG/
Quantity/20GP/
40GP: 30pcs/
20GP 60cps/40GP/ Displacement:110cc/125cc/150cc/200cc250cc/4stroke/
