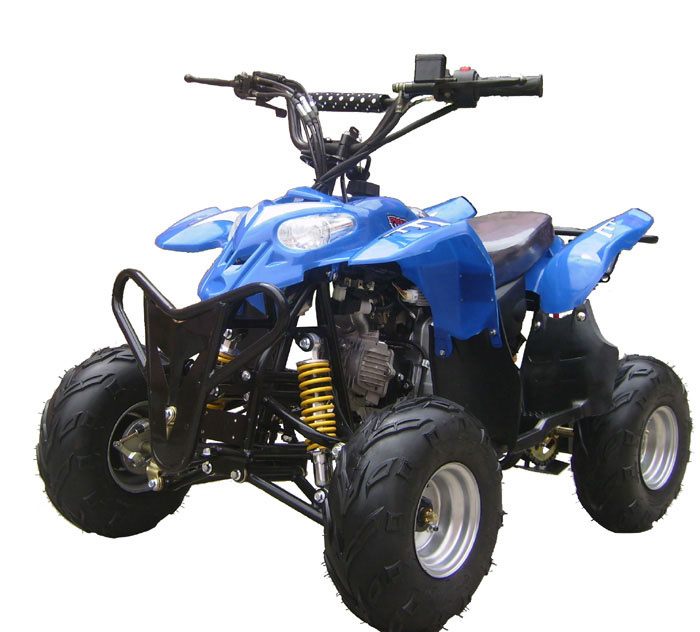

WV-ATV-016

Specifications

Product Description

Engine:
110CC, Single cylinder, air cooling, 4 stroke
Maximum power(Kw/rpm): 2.3kw/8500rpm
Ignition: CDI
Transmission: Automatic
Starter system: Electric starter

Chassis:
Brakes (Front/rear): Drum/Hydraulic disc
Absorber (front/rear): Hydraulic absorber
Tires/Front: 16x8.0-7
Tires/Rear: 16x8.0-7

Fuel capacity: 4L
Battery: 12V 5AH
Drive train: Chain

Dimensions:
Wheel base: 870mm
Seat height(mm): 610mm
Ground clearance(mm): 120mm

Packing:
Iron frame and box LxWxH(mm): 1450x850x930

Other:
Max speed: 65km/h
Max load capacity: 120Kgs
