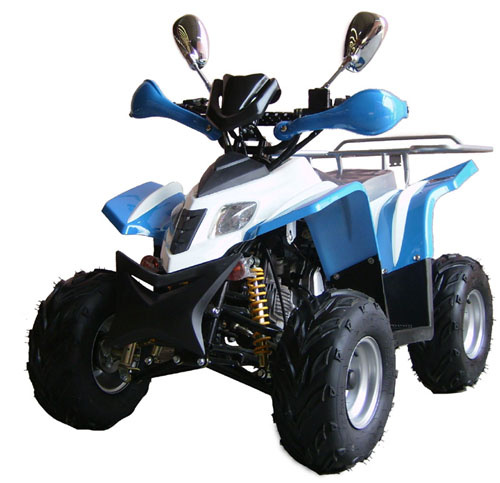

WV-ATV-006

Specifications

Product Description

Engine:
110CC, 4-stroke, single cylinder, air-cooling
Displacement: 110ml
Ignition: CDI

Starting system: Electric
Max. Power: 2.3kW / 7, 000rpm
Transmission: Automatic

Chassis:
Brakes (Front/rear): Drum/Hydraulic disc
Absorber (front/rear): Hydraulic absorber
Tires(Front/Rear): 16x8.0-7/16x8.0-7

Drive train: Chain
Fuel capacity: 4.5L
Battery: 12V 5AH

Dimensions:
Wheel base: 750mm
Seat height: 560mm
Climbing ability: 17°

Dimension: 1, 230 x 710 x 830mm
N. W.: 68kg
G. W.: 92kg

Packing:
Iron frame and box
Carton dimensions: 1, 160 x 740 x 660mm

Other:
Max speed: 45km/h
Max load capacity: 110Kgs
