Specifications
Prod Model: |
HHD-WD-50FL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Electric Disabled Scooter |
Battery: |
12V*2 38ah |
Motor: |
400W |
Max.Speed: |
8km/H |
Max.Climbing Capability: |
15° |
Wheel: |
260X85 Mm |
Wheel Hub: |
Aluminum Alloy |
Travel Range: |
40km |
Stainless Steel: |
Available |
Max.Loading Weight: |
120kgs |
Load Capacity: |
100-200kg |
Climbing Capability: |
12?? |
Accessories: |
Seat Belt |
Certification: |
EEC |
Folded: |
Unfolded |
Voltage: |
24V |
Product Description

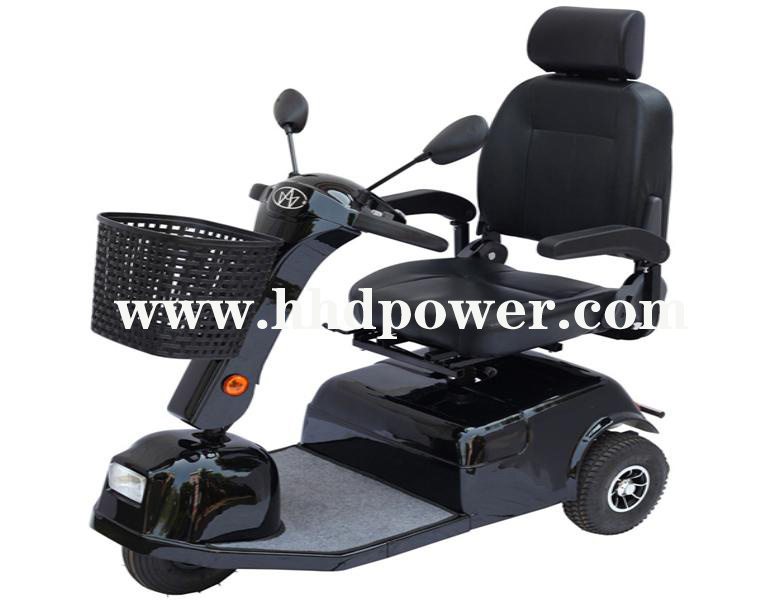

Wido mobility scooter/electric disabled scooter
1)Developed as a middle luxurious scooter
2)it is a cost-effective scooter
3)with assembled luxurious and comfortable seat which back rest can be 180 degree adjusted
4)the front and rear shock absorbers, it makes driving more comfortable
5)With LED displayer
Battery |
12VX2 38AH |
Motor power |
400W |
Controller |
PG 70A |
Electric Brake |
Warner 24v |
Overall dimensions |
1250×640×1170mm |
Weight w/o battery |
59 kg |
Max. speed (km/h) |
8km/h |
Turning Radius |
1.15m |
Max. climbing grade |
15° |
wheel |
260X85 mm |
Drive System |
24V Sealed Mid Transaxle |
Max. loading weight |
120kgs |
Total Weight w/Bat. |
87kg |
Ground Clearance |
60mm |
Travel Range |
up to 40 KM |
Free Wheeling |
Manual |
Wheel Hub |
Aluminum Alloy |
Seating |
360° Swivel and Position Adjustment - Foldable seat w/ arm rest and head rest |
Qty/20 |
42pcs |
Qty/40 |
90pcs |
Qty/40HQ |
108pcs |
charger (Included) |
5A |
