| Prod Model: |
HHD1101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
12V*2 38ah |
| Motor: |
250W |
| Max.Speed: |
6km/H |
| Max.Climbing Capability: |
12° |
| Wheel: |
Front:2*7; Rear2.5*8 |
| Travel Range: |
40km |
| Stainless Steel: |
Available |
| Max.Loading Weight: |
120kgs |
| Load Capacity: |
100-200kg |
| Climbing Capability: |
12?? |
| Accessories: |
Seat Belt |
| Certification: |
EEC |
| Folded: |
Unfolded |
| Voltage: |
24V |
Product Description

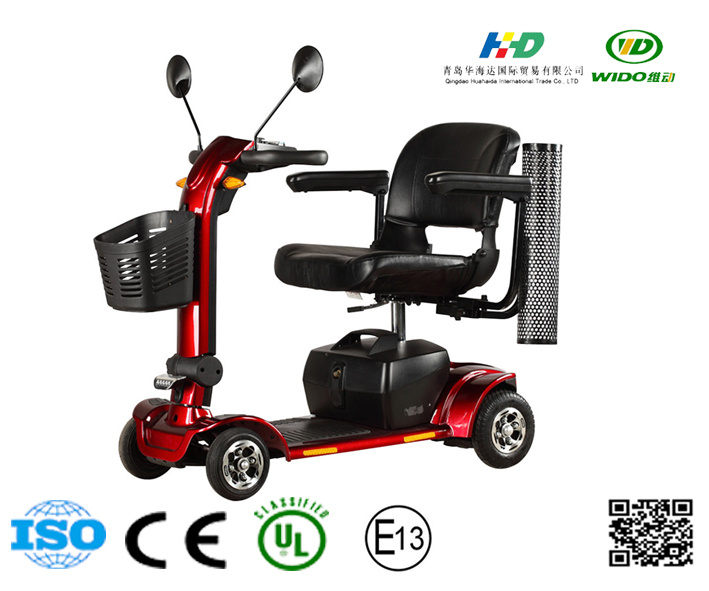

Electric safety Disabled Mobility Scooter
1)developed as a light weight mobility scooter
2)with its advantage of compact size
3)foldable design and easy to carry
4)it is suitable for home use and take along for travel
| 1)Developed as a light weight mobility scooter; | |
| 2)With its advantage of compact size; | |
| 3)Foldable design and easy to carry; | |
| 4)It is suitable for home use and take along for travel. | |
| Technical Information | |
| length×width×height | 1100mm×690mm×1050mm |
| weight | 64kg |
| Max climbe | 12° |
| Turning Radius | 110cm |
| Max Speed | 6km/h |
| Cover range | 16km |
| Ground clearance | 6.35cm |
| Driving system | Back drive |
| Tire | front:2×7; rear2.5×8 |
| Battery | 17Ah lead-acid battery |
| Motor | 250W |
| Voltage Rating | DC24v |
