Specifications
Prod Model: |
HHD-WD-70FL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Electric Disabled Scooter |
Battery: |
12V*2 38ah |
Motor: |
400W |
Max.Speed: |
10km/H |
Max.Climbing Capability: |
12° |
Wheel: |
12X4.1`` |
Wheel Hub: |
Aluminum Alloy |
Travel Range: |
40km |
Stainless Steel: |
Available |
Max.Loading Weight: |
120kgs |
Load Capacity: |
100-200kg |
Climbing Capability: |
12?? |
Accessories: |
Seat Belt |
Certification: |
EEC |
Folded: |
Unfolded |
Voltage: |
24V |
Product Description

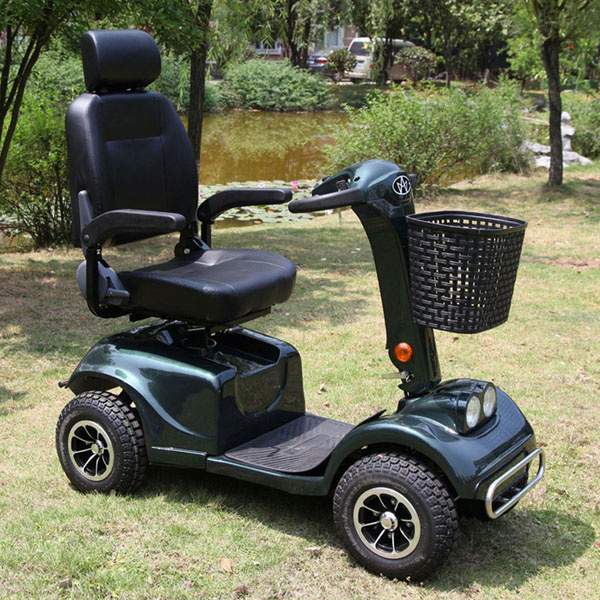

Wido electric scooter/electric mobility scooter
1)Developed as a middle luxurious scooter
2)it is a cost-effective scooter
3)with assembled luxurious and comfortable seat which back rest can be 180 degree adjusted
4)the front and rear shock absorbers, it makes driving more comfortable
Technical Information |
|
Battery |
12VX2 38AH |
Motor power |
400W |
Controller |
PG 70A |
Electric Brake |
Warner 24v |
Overall dimensions |
1390×650×1080mm |
Weight w/o battery |
69 kg |
Max. speed (km/h) |
10km/h |
Turning Radius |
2.00m |
Max. climbing grade |
12° |
wheel |
12X4.1`` |
Drive System |
24V Sealed Transaxle |
Max. loading weight |
120kgs |
Total Weight w/Bat. |
97kg |
Ground Clearance |
80mm |
Travel Range |
up to 40 KM |
Free Wheeling |
Manual Electric |
Wheel Hub |
Aluminum Alloy |
Seating |
360° Swivel and Position Adjustment - Foldable seat w/ arm rest and head rest |
Qty/20 |
33pcs |
Qty/40 |
69pcs |
Qty/40HQ |
75pcs |
charger (Included) |
5A |
