Specifications
Prod Model: |
LE-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measure: |
1080*430*300 |
Net Weight: |
55kg |
Power: |
Electric |
Load Capacity: |
100-200kg |
Climbing Capability: |
25?? |
Accessories: |
Seat Belt |
Voltage: |
48V |
Product Description

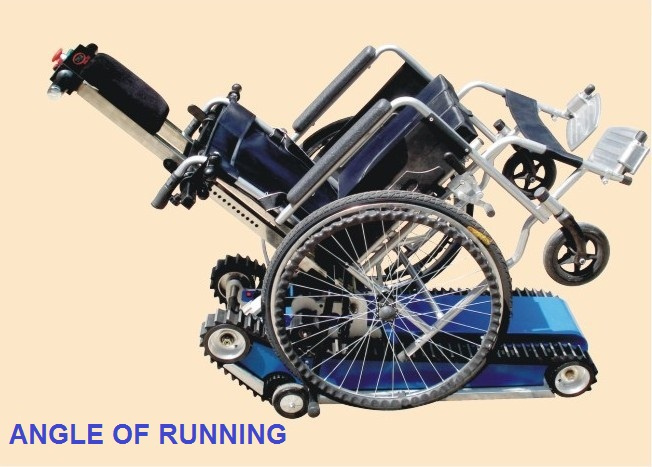

Rubber belts Wheelchair Upstairs Climber, is a means of delivery of a barrier-free facilities for the old and disabled person.
It is used in some of the required up or down the stairs, where there is no elevator or other lifting facilities.
The product's basic function is to carry the wheelchair and wheelchair occupant up and down the stairs, keep the elderly and the disabled people in a safe and comfortable condition, up and down the floor together with wheelchair.
Name |
Data |
Remark |
Distance between Front center and rear wheel center(mm) |
925 |
|
Formal Dimension(mm) |
1080×430×300 |
|
Total Weight(kg) |
65 |
|
Carrying Capacity(kg) |
150 |
|
Speed(m/min) |
7 |
|
MAX Climb Angle(°) |
40 |
|
BatteryType |
Lithium Battery |
|
Battery Capacity(A.h) |
17 |
|
Voltage(V) |
48 |
|
Motor Type |
Per Magnet DC |
|
Motor Rated Power(W) |
500 |
|
Handle Height(mm) |
1200 |
|
Rubber Belt MAX Pull (N/mm) |
90 |
|
Electrification Power Input(V) |
AC220±10% 50Hz |
|
Under Voltage protection (V) |
≥50 |
|
Overcurrent protection(A) |
<27 |
|
