Prod Model: |
HL-MS01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Battery: |
12V*2 55ah |
Motor: |
800W |
Max.Speed: |
12km/H |
Max.Climbing Capability: |
15 |
Travel Range: |
40km |
Climbing Capability: |
15?? |
Load Capacity: |
100-200kg |
Accessories: |
Basket |
Certification: |
EEC |
Folded: |
Unfolded |
Voltage: |
48V |
Product Description

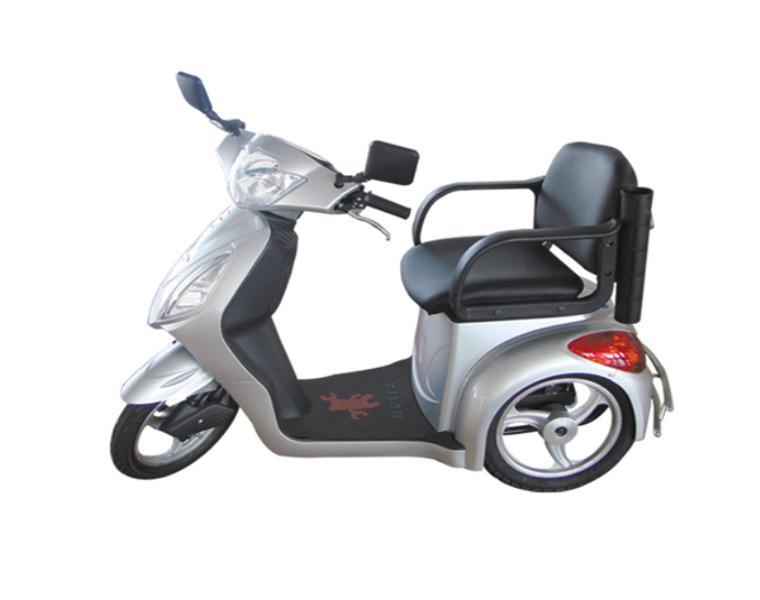

Electric disabled scooter/mobility scooter
1)Developed as a middle luxurious scooter
2)it is a cost-effective scooter
3)with assembled luxurious and comfortable seat which back rest can be 180 degree adjusted
4)the front and rear shock absorbers, it makes driving more comfortable
Battery
12VX2 55AH
Motor power
800W
Controller
PG 120A
Electric Brake
Warner 24v
Overall dimensions
1860×690×1280mm
Weight w/o battery
92 kg
Max. speed (km/h)
12km/h
Turning Radius
Max. climbing grade
15°
wheel
12X4.1``
Drive System
24V Sealed Transaxle
Max. loading weight
205kg
Total Weight w/Bat.
126.3kg
Ground Clearance
80mm
Travel Range
up to 40 KM
Free Wheeling
Manual Electric
Wheel Hub
Aluminum Alloy
Seating
360° Swivel and Position Adjustment - Foldable seat w/ arm rest and head rest
Qty/20
27pcs
Qty/40
54pcs
Qty/40HQ
72pcs
charger (Included)
5A
GUREAT GROUP founded by LEVE IMP&EXP Co., Limited, Qingdao Chuntai Automobile Components Co., Ltd & Qingdao Gureat Metal Co., Ltd
GUREAT Group, work on Research, Sales and after sale service for Special Rubber Tracks, Track conversion systems, Wheelchair upstairs climber, Gear Ring, Flywheel, Auto Parts, Constructon hardware, stamping weld DIY products, We have established THREE plants in these area.
We see quality as our basic, Price is our strong point, increasing the quality, decreasing the price. Offer best service, have more patience for customers. Resolved the problem that come from using sincerely. Get a positive feedback.
GUREAT centence "professional, excellent", wish to cooperate with new and old clients, with mutual benefit, to get a wonderful business.
