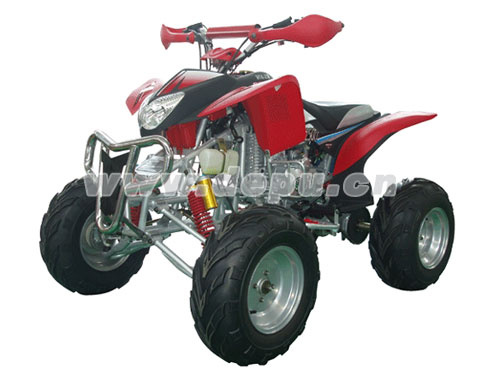

Water-Cooled, 200cc, Single-Cylindered, 4-Stroke EPA ATV (DP-ATV200(EPA)-K)

Specifications

Prod Model:	DP-ATV200(EPA)-K

Product Description

1) Engine type: single cylinder, water-cooled, four strokes
2) Power: 10kW / 7,500rpm
3) Max. torque: 13.5Nm / 6,500rpm
4) Min. ground clearance: 110mm
5) Wheel base: 1,150mm
6) Fuel tank capacity: 4L
7) Transmission mode: chain
8) Start mode: electric
9) Tires:
a) Front wheels: 21?7-10
b) Rear wheels: 20?10-10
10) Max. speed: ≥70km/h
11) Break type (F/R): drum/disc
12) Power source: 12V, 9Ah
13) Height of seats: 800mm
14) Dry weight: 150kg
15) Load capacity: 150kg
16) Climbing degree:≥20 degree
17) Front hanging:double arm-swing
18) Rear hanging: integral
19) Cylinder size: 63.5 x 62.2mm
20) Displacement: 197mL
21) Transmission: 4 gears with reverse gear , manual clutch
22) Min. turning radius: 2,700mm
23) Parking trig: mechanical lock
24) Ignition mode: CDI
25) Engine oil: 0.9L
26) Max. number of riders: 1
27) Lubrication: press splash
28) Compression proportion: 8.8:1
29) Gas cylinder number: 1
30) Product dimensions (L x W x H): 1,740?1,120?1,140mm

Carton dimensions: 1,470*860* 880mm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44units
Qty/40' HQ: 66 units
