Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Folded: |
Unfolded |
Engine: |
4 Stroke |
Certification: |
EEC |
Fuel Tank Capacity: |
4.2L |
Maximum Loading Capacity: |
150kg |
Displacement: |
50CC |
Max Speed: |
Upon Request |

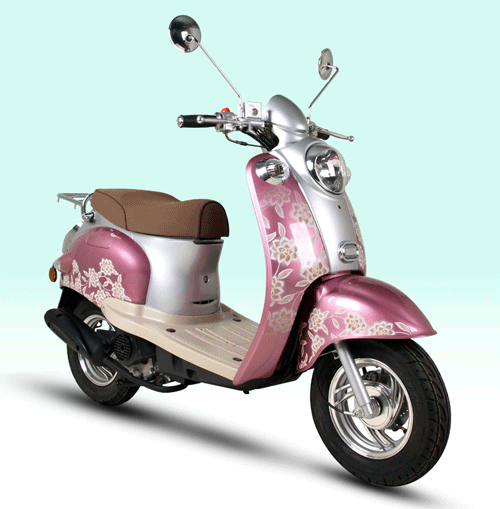

Product Description
Includes stainless steel LCD speedometer panel and higher handle bar for better riding comfort.
Specifications:
Engine type: 4-stroke, single-cylinder and forced air-cooled
Valve train: 2-valve and SOHC
Bore x-stroke: 39 x 41.5mm
Displacement: 49.6CC
Compression ratio: 10.4: 1
Ignition system: CDI
Starter: Electric/kick start
Maximum power: 2.2kW/7, 500rpm
Maximum torque: 2.5nm/6, 500rpm
Gearbox: CVT
Front suspension: Oil damped telescopic fork
Rear suspension: Oil damped coil spring
Tire: Front: 3.50-10 inches Rear: 3.50 -10 inches
Front brake: Disc
Rear brake: Drum
Wheelbase: 1, 200mm
Dry weight: 73kg
Engine oil capacity: 0.8L
Fuel tank capacity: 6L
Maximum loading capacity: 150kg
Dimensions: 1, 720 x 630 x 1, 080mm
Packing:
CBU size: 1, 745 x 570 x 1, 140mm
SKD size: 1, 700 x 570 x 870mm
Loading:
CBU:
20ft container: 26 units
40ft container: 54 units
40ft HQ container: 54 units
SKD:
20ft container: 26 units
40ft container: 56 units
40ft HQ container: 84 units
