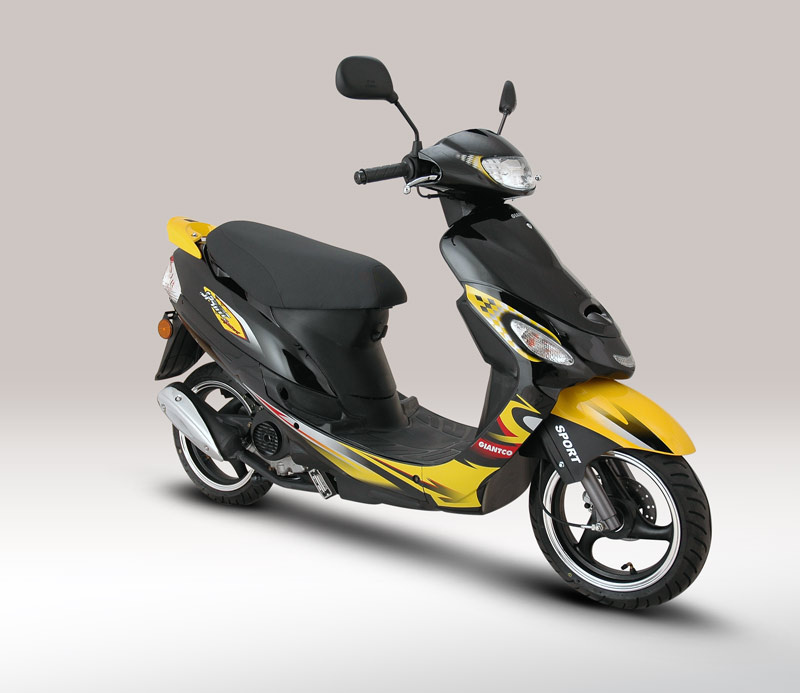

Sprint Gas Scooter
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Folded: | Unfolded |
| Engine: | 4 Stroke |
| Certification: | EEC |
| Fuel Tank Capacity: | 5.8L |
| Maximum Loading Capacity: | 150kg |
| Displacement: | 50CC |
| Max Speed: | Upon Request |
Product Description
Engine type: 4-stroke, single-cylinder and forced air-cooledValve train: 2-valve, SOHC
Bore x-stroke: 39 x 41.5mm
Displacement: 49.6CC
Compression ratio: 10.4: 1
Ignition system: CDI
Starter: Electric/kick start
Maximum power: 2.2kW/7, 500rpm
Maximum torque: 2.5nm/6, 500rpm
Gearbox: CVT
Front suspension: Oil damped telescopic fork
Rear suspension: Oil damped coil spring
Tire:
Front: 100/12 to 60 inches
Rear: 100/12 to 60 inches
Front brake: Disc
Rear brake: Drum
Wheelbase: 1, 210mm
Dry weight: 82kg
Engine oil capacity: 0.8L
Fuel tank capacity: 5.8L
Maximum loading capacity: 150kg
Dimensions: 1, 710 x 654 x 1, 110mm
Packing:
CBU size: 1, 660 x 570 x 1, 150mm
SKD size: 1, 630 x 465 x 870mm
Loading quantity:
CBU:
20ft container: 26 units
40ft container: 56 units
40ft HQ container: 56 units
SKD:
20ft container: 34 units
40ft container: 73 units
40ft HQ container: 107 units
GIANTCO LIMTED is a Hong Kong company founded in 1993 and started off as an engine manufacturer with a factory located in Taiwan. Having re-located to this modern factory based in Jiangmen, its production began in 2004 with a capacity to assemble up to 10, 000 units of motorcycles and scooters per month. More than half a million USD has been invested in key R&D and testing equipment including an emissions testing machine by PIERBURG.
With a quality assurance management system that is ISO 9001: 2008 certified, we have also more than 10 products that have been granted EEC type-approvals. We are proud to be the first Chinese motorcycle manufacturer to obtain e1 type-approval from KBA in Germany. Since it is GIANTCO's strong belief that the best quality control is in-built, a stringent quality control system is implemented at every production level, coupled with off-work training and career improvement programmes for our staff. Using imported hi-tech testing equipment from Germany, Japan and Taiwan, our QC technicians test all of the key components piece-by-piece throughout our production process.
Having "Customers First, Service the Best" as our Company Motto, we pride ourselves in providing good and prompt service. With a senior management team that is educated in the US & UK, our western-style communication can bridge the gap effectively between the East and West.
With a quality assurance management system that is ISO 9001: 2008 certified, we have also more than 10 products that have been granted EEC type-approvals. We are proud to be the first Chinese motorcycle manufacturer to obtain e1 type-approval from KBA in Germany. Since it is GIANTCO's strong belief that the best quality control is in-built, a stringent quality control system is implemented at every production level, coupled with off-work training and career improvement programmes for our staff. Using imported hi-tech testing equipment from Germany, Japan and Taiwan, our QC technicians test all of the key components piece-by-piece throughout our production process.
Having "Customers First, Service the Best" as our Company Motto, we pride ourselves in providing good and prompt service. With a senior management team that is educated in the US & UK, our western-style communication can bridge the gap effectively between the East and West.
