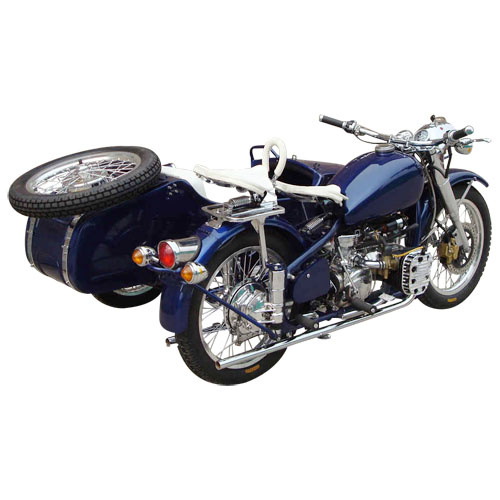

Tricycle (No. 2406)

Tricycle (No. 2406)
Price: Negotiable
Min Order: 1unit
Prod Model: M1M
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certification: CCC
Engine Type: 4-Stroke
Displacement: >250CC

Product Description

24HP
Polished surface
Flashing Sapphire
Deluxe plating
Leather cushion
Exhaust pipe
Small toolbox
Disc
Tires
750 M 1M Motorcycle Main technical Data

Dimensions ( length×width×height)(mm)

2400×1650×1000

Wheel base (mm)

1420

Tread (mm)

1100

Ground clearance (mm)

135

Column reach (mm)

60

Angle of column

25°30′

Dry weight (kg)

320

Max payload (kg)

3 Persons + 100kg

Top speed   (km/h)

85

Economic speed fuel consumption ( L 100km )

6

Engine

CJ750D

Cylinder   diameter × stroke (mm)

78×78

Total displacement

746

Compression Ratio

5.85:1

Max power and its corresponding speed (kW/r/min)

17.7/4800

Applicable gasoline

RQ-90

Applicable oil

  HQ10 ( for summer) HQ 6 ( for winter)

Starting mode

Kick & Electric

Type of carburetor

PZ28D

Capacity of gasoline tank (L)

22

Oil capacity of crankcase (L)

2

Oil capacity of gear box ( L)

0.8

Oil capacity of rear drive ( L)

0.175

Clutch

Mechanically controlled double-disc. Dry friction

Gear position No.1   Gear position No.2   Gear position No.3   Gear position No.4

3.6:1 2.29:1 1.71:1 1.3:1

Mode of driving shaft

One universal joint

Speed redecing ratio of rear drive

4.62:1

Tyre size (inch)

3.75-19

Tyre pressure (kpa)

Front wheel     16kg /cm



Standard:

packing: 2300*1600*1150(mm)



Productivity:

1000 units/year



As one of the largest 750 motorcycle professional manufacturers in the country, the company possess a complete set of mould for bike s chassis, sidecar and other parts, etc. Besides, we also can provide a tailor-made fashion according to the customer s special requirement. The special equipments of painting, welding, assembling, testing could also be found in the place. Based on a long time and well built up cooperation with the domestic 750CC engine makers, and a strict quality control system for the bike, the 750m1m motorcycle made in this company has gained an excellent reputaion from bike riders in many countries and regions by its value of leisure, collection, classicality and reminiscence.
