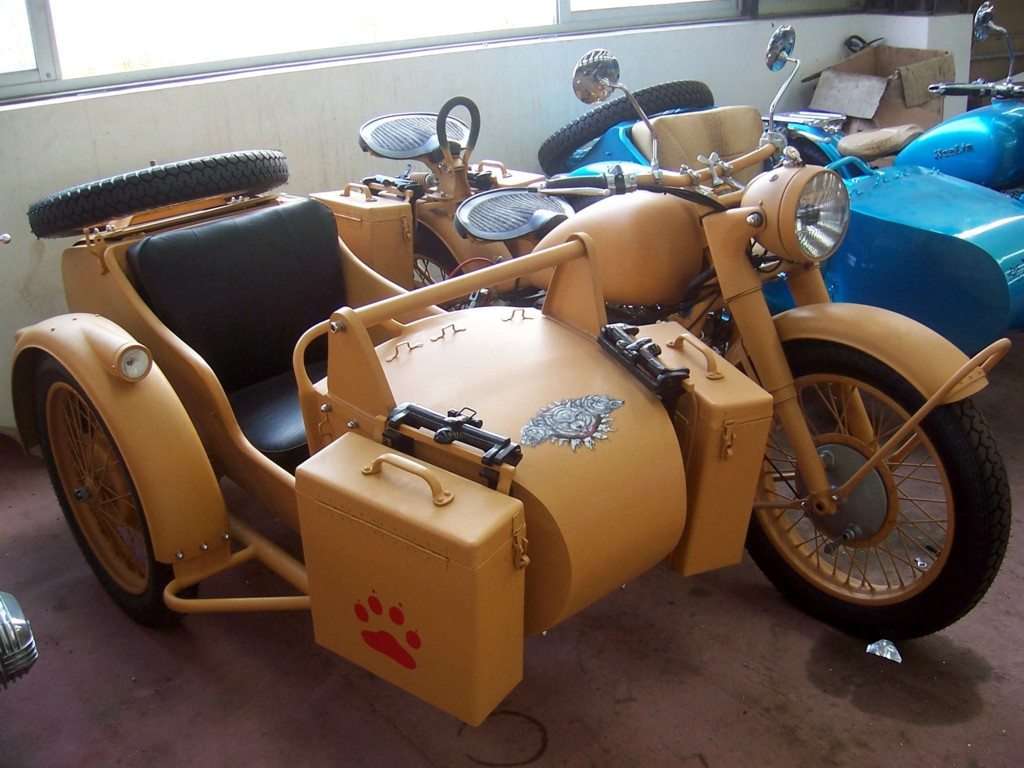

Home Guangzhou Linye Electronics & Machinery Technology Co., Ltd. Sidecar (No. 3212)
| Prod Model: | M1M |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Certification: | CCC |
| Engine Type: | 4-Stroke |
| Displacement: | >250CC |
Product Description
New products| Dimensions ( length×width×height)(mm) | 2400×1650×1000 |
| Wheel base (mm) | 1420 |
| Tread (mm) | 1100 |
| Ground clearance (mm) | 135 |
| Column reach (mm) | 60 |
| Angle of column | 25°30′ |
| Dry weight (kg) | 320 |
| Max payload (kg) | 3 Persons + 100kg |
| Top speed (km/h) | 85 |
| Economic speed fuel consumption ( L100km) | 6 |
| Engine | CJ750F |
| Cylinder diameter × stroke (mm) | 78×78 |
| Total displacement | 746 |
| Compression Ratio | 7+/-0.2:1 |
| Max power and its corresponding speed (kW/r/min) | 25/5000+200 |
| Applicable gasoline | RQ-90 |
| Applicable oil | HQ10 ( for summer) HQ 6 ( for winter) |
| Starting mode | Kick & Electric |
| Type of carburetor | PZ28F |
| Capacity of gasoline tank (L) | 22 |
| Oil capacity of crankcase (L) | 2 |
| Oil capacity of gear box ( L) | 0.8 |
| Oil capacity of rear drive ( L) | 0.175 |
| Clutch | Mechanically controlled double-disc. Dry friction |
| Gear position No.1 Gear position No.2 Gear position No.3 Gear position No.4 | 3.6:1 2.29:1 1.71:1 1.3:1 |
| Mode of driving shaft | One universal joint |
| Speed redecing ratio of rear drive | 4.62:1 |
| Tyre size (inch) | 3.75-19 |
| Tyre pressure (kpa) | Front wheel 16kg/cm |
As one of the largest 750 motorcycle professional manufacturers in the country, the company possess a complete set of mould for bike s chassis, sidecar and other parts, etc. Besides, we also can provide a tailor-made fashion according to the customer s special requirement. The special equipments of painting, welding, assembling, testing could also be found in the place. Based on a long time and well built up cooperation with the domestic 750CC engine makers, and a strict quality control system for the bike, the 750m1m motorcycle made in this company has gained an excellent reputaion from bike riders in many countries and regions by its value of leisure, collection, classicality and reminiscence.
