Home Golden Motor Technology Co., Ltd. to Makd Money Easily? E-Throne! Golden Motor New Folding Electric Wheelchair, The Best in The World. \
to Makd Money Easily? E-Throne! Golden Motor New Folding Electric Wheelchair, The Best in The World. \
| Price: | US $ 2200/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Motor: | 24V 180W/24V 250W |
| Range: | 28 Miles |
| Back Rest Tilting: | 5 Inclinable Angles |
| Climbing Capability: | 15?? |
| Load Capacity: | 100-200kg |
| Accessories: | Seat Belt |
| Certification: | CE |
| Folded: | Folded |
| Voltage: | 24V |
Product Description
Be Quick! Get the only One Chance Urgently!
You are Invited to join our exclusive distributors team for this new innovative folding electric wheelchair in every countries.
Following countries already exists exclusive dealers: USA, Canada, Spain, Israel, India
Golden Motor e-Throne Folding Wheelchairs (Absolutely The Best IN The World)
e-Throne: Redefinition of Electric Wheelchair Technologies
Top Quality Workmanship, Comfortable Riding Experience Guaranteed!
Super Light, Quickest Folding/Unfolding, Inclineable Back, Sturdy Aluminium Frame,
50% Battery Saving, 28km Travel Range, 10x Longer Motor Life, Maintenance Free ......

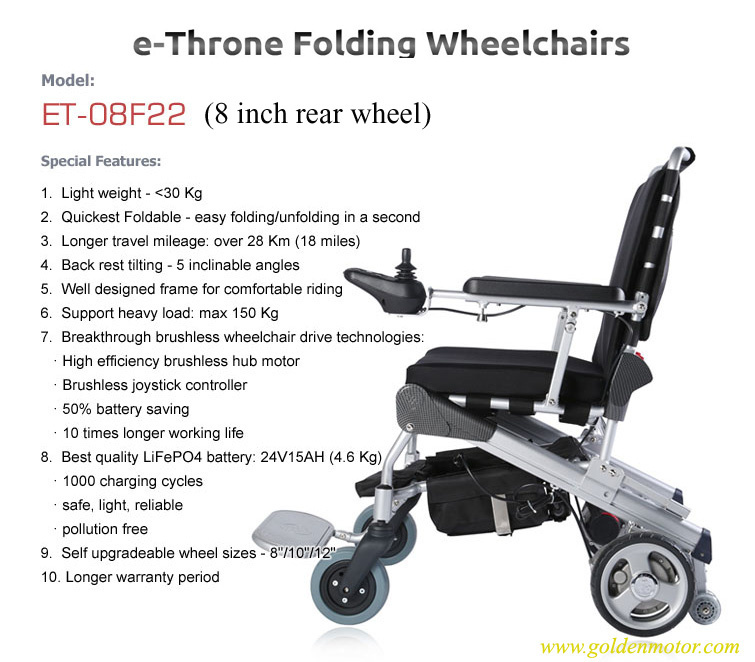

Special Features:
1. Light weight - <30 Kg
2. Quickest Foldable - easy folding/unfolding in a second
3. Longer travel mileage: over 28 Km (18 miles)
4. Back rest tilting - 5 inclinable angles
5. Well designed frame for comfortable riding
6. Support heavy load: max 150 Kg
7. Breakthrough brushless wheelchair drive technologies:
l High efficiency brushless hub motor
l Brushless joystick controller
l 50% battery saving
l 10 times longer working life
8. Best quality LiFePO4 battery: 24V15AH (4.6 Kg)
l 1000 charging cycles
l safe, light, reliable
l pollution free
9. Self upgradeable wheel sizes - 8"/10"/12"
10. Longer warranty period

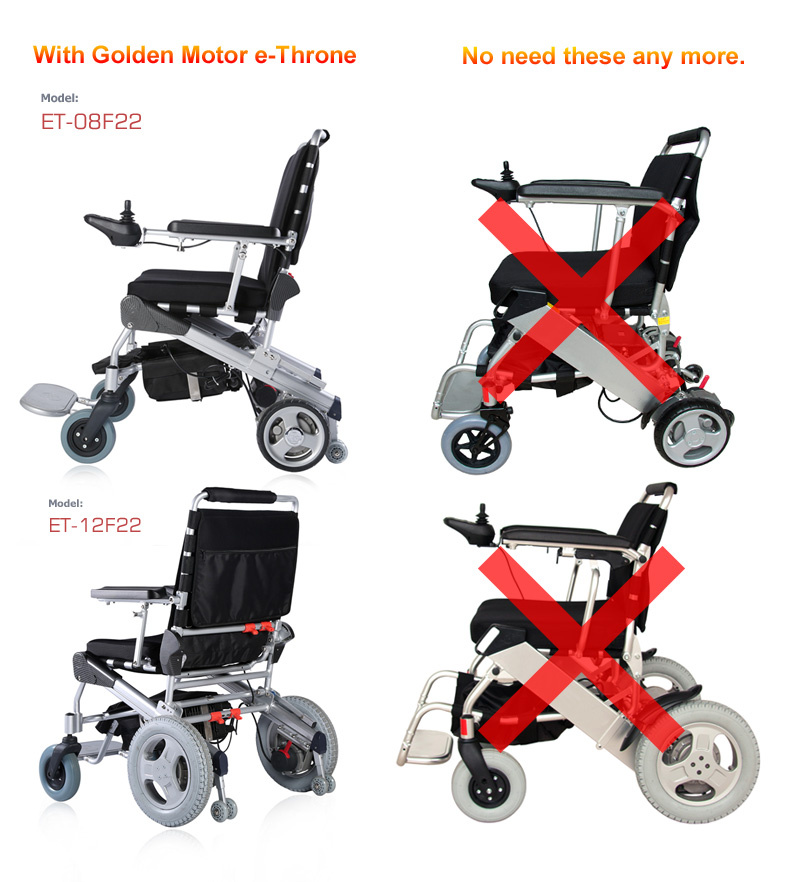

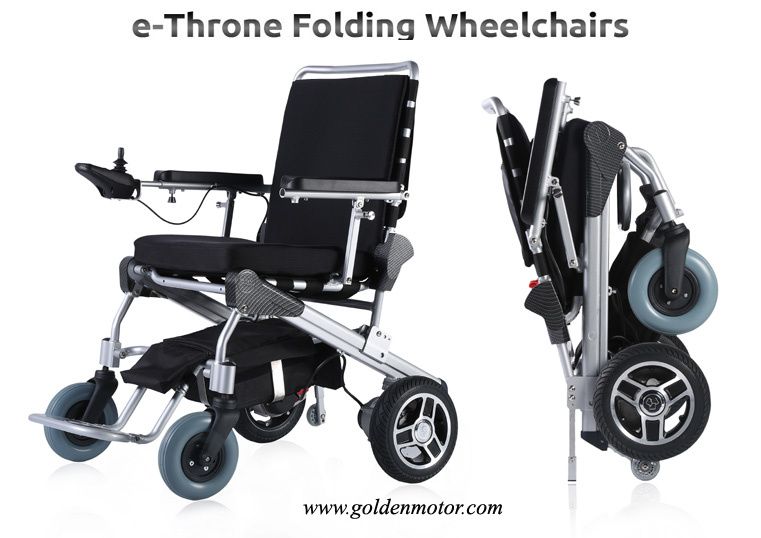

Real pictures and spec. for each portable / foldable electric power wheelchair :
Details for the folding wheelchairs:
| Parameter | e-throne 8''10'' | e-Throne 12'' |
| Device Weight:(with battery): | 29kg(24V10AH battery ); 30.7kg(24V15AH battery) | 31kg(24V10AH battery ); 32.7kg(24V15AH battery) |
| Device Weight(without battery): | 26 kg | 28 kg |
| Folded Dimensions:(L x W H): | 80cm*65cm*35cm | 80cm*68cm*35cm |
| Unfolded Dimensions: | 100cm*65cm*95cm | 100cm*68cm*96cm |
| Packing Dimensions: | 72cm*40cm*90cm | 72cm*40cm*90cm |
| Seat Dimensions:(L x W): | 42cm*45cm | 42cm*45cm |
| Seat Height: (from ground): | 50cm | 52cm |
| Arm Rest Height:(from ground): | 68cm | 70cm |
| Turning Radius: | 120cm | 120cm |
| Ground Clearance: | 10cm | 10cm |
| Front Wheels:(Diameter x Width): | 6''*5cm | 8''*5cm |
| Rear Wheels:(Diameter x Width): | 8''*5cm | 12''*6.5cm |
| Wheelbase: | 45cm | 48cm |
| Tread: | 60cm | 65cm |
| Tyre Type: | PU filled tire | PU filled tire |
| Wheel Material: | Rubber | Rubber |
| Pedal(L*W): | 32cm*13cm | 32cm*13cm |
| Motor Type: | 24V180W brushless hub motor | 24V250W brushless hub motor |
| Battery: | 24v10ah Li-on battery:2.6kg 14cm*16cm*7cm 24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm Charging cycle >1000times | |
| Brake Type: | Electromagnetic brake | |
| Maximum Speed | 4MPH | |
| Max Capacity | 200kg | |
| Distance on Full Battery: | 20KM(24V10AH) 35km(24V15AH) | |
| Climbing ability: | 6° | |
| Slope capacity | 9° | |
Customer's Experience about this innovative folding wheelchair
"I just recently purchased a ET-08F22 wheelchair and with the batteries arriving Tuesday I have been using it for the last 2 days. I have to congratulate Golden Motors on the design of this chair. It is brilliant in the way it folds so easily, so small and light, perfect for travel and strong enough for many everyday uses. You can say that I am a very pleased customer." -- Greg Burge, USA
It is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: a Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.
If you are involved with high performance EV applications, there is an important motor technology which is pancake motor (or disc shaped motor) from GoldenMotor. What separates the pancake motor from conventional axial motor is its slotless disc armature. This difference enables pancake motors to deliver a level of performance which is not attainable with conventional ironcore motor designs used by most traditional power wheelchairs in today's market. In addition to performance advantages, pancake motors have a unique flat & compact shape that is best fit for motorized wheel applications, such as power wheelchairs, power scooters. The unique advantages that the slotless pancake motor technology has brought include:
- Very long operating life
- Absolutely zero cogging for ultra smooth velocity & torque even at slow speeds
- Low armature mass for high accelerations and decelerations
- Low inductance for almost instantaneous torque
- Very high peak torques for rapid accelerations
- Flat motor profile for extremely compact size
- Stamped winding technology for very high reliability and low cost
- Low Electrical Noise
Golden Motor Technology Co Ltd just launched its innovative power wheelchairs equiped with above mentioned pancake motors. They come with following unbeatable features:
- Super integrated motorized wheel drive -- Make your wheelchair Simple, Neat and Light
- Higher efficiency with our stamped pancake motor technology -- Drive you eXtra Miles
- Double trip range: Up to 25Km with only 24V/20AH SLA pack (180x76x168mm - 12V20AH each)
- Lowest power consumption: Less than 4Amps at speed of 4MPH at level
- Two-motor combined output power: 400W/24V or 600W/36V with the same set of motors
- Built-in electric-magnetic parking brake (EMB) and manual release handle
- Climbing up and parking with 110Kg load at 12 degree slope easily
- Lightest weight (30Kgs w/o battery, 44Kgs with battery)
- Maintenance-free puncturable tyre
- High load capacity (180kgs maximum)
- State of art wheelchair joystick controller
Welcome to join our dealers team! No investment; No Risk! Drop Shipping for you!
For more information, please send me an inquiry with your valid email address --- Johnson
Golden Motor Technology Co Ltd is emerging as one stop shop for key components of personal electric vehicles(PEV), from electric bikes to electric cars. You can always find suitable solutions, parts for your EV applications from us.
With our strong R&D team, established dealer networks over 50 countries, we are confident to provide our valuable customers with top quality products and services at competitive cost.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycle and electric car driving system, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes, power wheelchairs, highend battery packs, electric Motorcycle motors, electric Car motors, as well as their compatible controllers. With all this said, you need not look elsewhere trying to find a compatible part or accessory.
GoldenMotor is at TOP rankings over millions.
We have thousands of visitors a day, who browse our website for products. This is already a good marketing start for you and for us. GoldenMotor. COM is ranked at top positions over millions of other websites on Google for following product keywords:
Top Ranking Keywords:
hub motor
ebike motor
brushless motor
wheelchair motor
electric bike motor
bike conversion kit
brushless controller
electric scooter motor
eletric motorcycle motor
wheelchair conversion kit
brushless motor controller
electric wheelchair controller
brushless wheelchair controller
Our products are well accepted in China, North America and Europe markets. Over 80% of our products are exported to international markets. As a proof, there are huge number of electric shopping carts running in thousands of WalMart superstores across USA, are equiped with our patented hub motors with energy saving and feature rich functions.
You are cordially invited to join Golden Motor family to become our local dealer and promote polution free personal electric vehicles. This is a fast growing market worldwide, and you will benefit and enjoy from such partnership if you are ready.
Our team are thinking CREATIVE! Always!
Join Golden Motor's Global Dealers Network today!
Eletric vehicle business is profitable and rapid growth.
Let's work together as win-win partners!
With our strong R&D team, established dealer networks over 50 countries, we are confident to provide our valuable customers with top quality products and services at competitive cost.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycle and electric car driving system, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes, power wheelchairs, highend battery packs, electric Motorcycle motors, electric Car motors, as well as their compatible controllers. With all this said, you need not look elsewhere trying to find a compatible part or accessory.
GoldenMotor is at TOP rankings over millions.
We have thousands of visitors a day, who browse our website for products. This is already a good marketing start for you and for us. GoldenMotor. COM is ranked at top positions over millions of other websites on Google for following product keywords:
Top Ranking Keywords:
hub motor
ebike motor
brushless motor
wheelchair motor
electric bike motor
bike conversion kit
brushless controller
electric scooter motor
eletric motorcycle motor
wheelchair conversion kit
brushless motor controller
electric wheelchair controller
brushless wheelchair controller
Our products are well accepted in China, North America and Europe markets. Over 80% of our products are exported to international markets. As a proof, there are huge number of electric shopping carts running in thousands of WalMart superstores across USA, are equiped with our patented hub motors with energy saving and feature rich functions.
You are cordially invited to join Golden Motor family to become our local dealer and promote polution free personal electric vehicles. This is a fast growing market worldwide, and you will benefit and enjoy from such partnership if you are ready.
Our team are thinking CREATIVE! Always!
Join Golden Motor's Global Dealers Network today!
Eletric vehicle business is profitable and rapid growth.
Let's work together as win-win partners!
