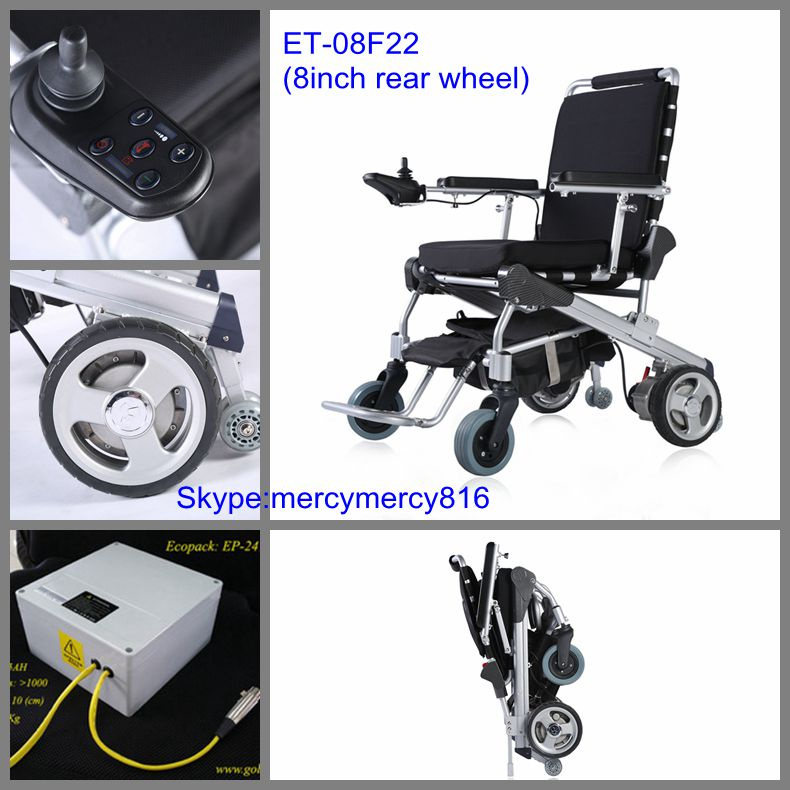

Lightest Electric Wheelchair CE Approved 8'' Brushless Wheelchair /E Power Wheelchair/Electric Folding Wheelchair with LiFePO4

Specifications

Prod Model:	ET08F22/ET12F22/ET10F22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
8:	Inch
Climbing Capability:	15??
Load Capacity:	100-200kg
Certification:	CE
Folded:	Folded
Voltage:	24V
Charging Time:	3 Hours Fully Charge

Product Description

If you are involved with high performance EV applications, there is an important motor technology which is pancake motor (or disc shaped motor) from GoldenMotor. What separates the pancake motor from conventional axial motor is its slotless disc armature. This difference enables pancake motors to deliver a level of performance which is not attainable with conventional ironcore motor designs used by most traditional power wheelchairs in today's market. In addition to performance advantages, pancake motors have a unique flat & compact shape that is best fit for motorized wheel applications, such as power wheelchairs, power scooters. The unique advantages that the slotless pancake motor technology has brought include:

Very long operating life
Absolutely zero cogging for ultra smooth velocity & torque even at slow speeds
Low armature mass for high accelerations and decelerations
Low inductance for almost instantaneous torque
Very high peak torques for rapid accelerations
Flat motor profile for extremely compact size
Stamped winding technology for very high reliability and low cost
Low Electrical Noise

Golden Motor Technology Co Ltd just launched its innovative power wheelchairs equiped with above mentioned pancake motors. They come with following unbeatable features:
Super integrated motorized wheel drive -- Make your wheelchair Simple, Neat and Light
Higher efficiency with our stamped pancake motor technology -- Drive you eXtra Miles
Double trip range: Up to 25Km with only 24V/20AH SLA pack (180X76X168mm - 12V20AH each)
Lowest power consumption: Less than 4AMPS at speed of 4MPH at level
Two-motor combined output power: 400W/24V or 600W/36V with the same set of motors
Built-in electric-magnetic parking brake (EMB) and manual release handle
Climbing up and parking with 110Kg load at 12 degree slope easily
Lightest weight (30Kgs w/o battery, 44Kgs with battery)
Maintenance-free puncturable tyre
High load capacity (180kgs maximum)
State of art wheelchair joystick controller

· It's Lightweight & Foldable to a Compact Size - Fits virtually Anywhere
· It uses Non-Memory Effect Batteries that can be Charged Anytime
· It has Dual Wheel Motors with Direct Drive for Amazing Power
· It uses Brushless Motors that are More Efficient than Brushed Motors
· It Costs Substantially Less than any of its Competitors
· It Has Replacement Parts are very affordable on any budget
· It Requires Very Little Maintenance and is easily serviced
· It is Much More Stable than a wobbly 3 Wheel Scooter

Weighing only 50 pounds, the Wheelchair is the most convenient, innovative and portable mobility device on the market. For it's light weight, it is also extremely durable, being able to support passengers weighing up to 250 pounds!
The Wheelchair is easy to fold & extremely convenient for traveling in any type of vehicle whether it's a Car, Truck, SUV, Taxi, Bus, Train, Cruise Ship or Airplane. The Wheelchair easily folds up and stores in any car trunk and you will never need to buy an expensive lift for your car and go through the trouble of having it installed.


 Are you having a difficult time going to your favorite stores ,Markets ,Shopping malls ,outdoor events ,or even gatherings with your loved ones ?If So ,GM PW 8F 20 may just be what you need !Even if you already own a powered wheelchair ,mobility scooter ,or any other typre of mobility aid ,The PW 8F 20 makes for a great companion products !Your old electric wheelchair or mobility scooter cannot do what the PW 8F 20 can .

Even if you already own a powered wheelchair ,mobility scooter ,or any other typre of mobility aid ,The PW 8F 20 makes for a great companion products !Your old electric wheelchair or mobility scooter cannot do what the PW 8F 20 can .
