Specifications
Prod Model: |
GT200SL-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
200CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Product Description

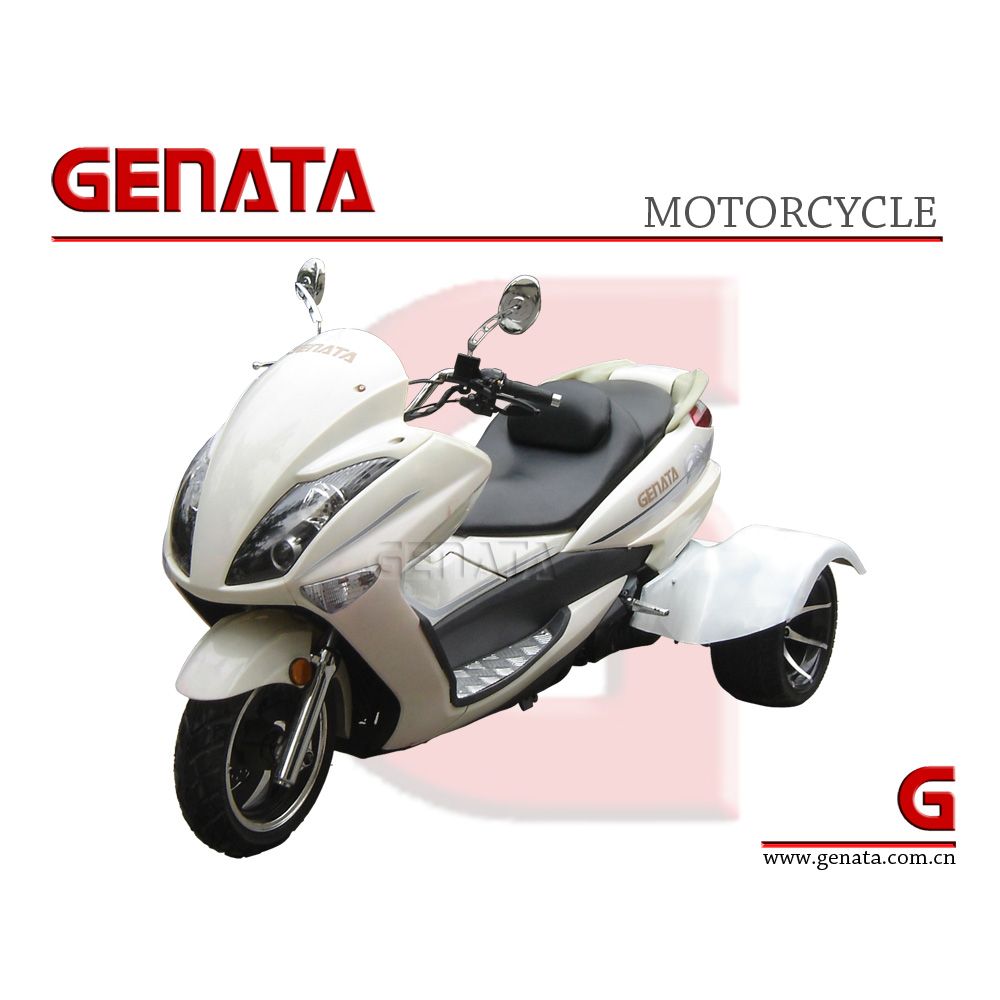

1. Three wheel ATV / Scooter / trike / motorcycle (GT200LP-1),
2. Japan brand made in chongqing of China.
3. Nice new model with competitive price.
4. With 2 rear brake disc (by hand) and Axel Differential System.
ENGINE |
|
Engine Type |
189cc, 161QML,single,oil cooled ,4 stroke |
Max. Power (kw/r/min) |
7.3/7000 |
Max. Torque (N.m/r/min) |
10.2/5000 |
Bore and Stroke (mm) |
61 x 57.8 |
Compression Ratio |
9.2:1 |
Starting System |
Electric/kick |
Ignition |
CDI |
Transmission |
Belt |
Clutch type |
Automatic,Centrifugal |
Max. Speed (Km/h) |
70 |
Engine oil capacity |
0.9 |
Oli grade |
SAE10W-40 |
Carburetor |
PD24J |
Fuel Tank Capacity (L) |
12 |
CHASSIS |
|
Front/Rear Brake |
Front/Rear disc brake |
Battery |
12V/9Ah |
Head light |
12v/35w |
Turn signal |
12v/10w |
Tail light |
LED |
License plate lamp |
12v/5w |
Front Tire |
130/60-13 |
Rear Tire |
235/30-12 |
Spark Plug |
A7TC |
Spark Plug clearance |
0.6-0.7(mm) |
DIMENSIONS AND OTHERS |
|
L × W × H (mm) |
2400×1090×1100 |
Net Weight (kg) |
188 |
Wheel Base (mm) |
1750 |
Max. Load Weight (kg) |
150 |
Container Loading |
20"GP:10pcs 40"HQ:20pcs |
