Specifications
Product Description

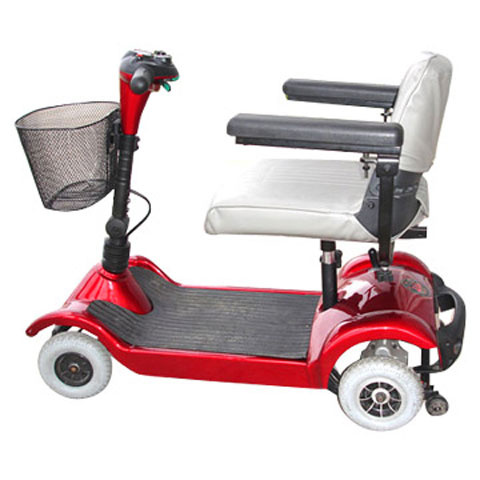

Features of the Mini Size Mobility Scooter:
1) Overall dimensions: 1,100 x 480 x 800mm
2) Weight without battery pack: 80lbs
3) Turning radius: 0.8m
4) Forward max. Speed: 6km/h
5) Backward max. Speed: 3.2km/h
6) Max climbing grade: 12 degrees
7) Range: Up to 20 miles
8) Ground clearance: 45mm
9) Carrying capacity: 130kg
10) Standard seat: Folding
11) Drive system: Rear-wheel drive, sealed mini transaxle, 24V DC motor 270W
12) Dual braking system: Electronic, regenerative, and electro mechanical
13) Tire: Solid or air charging
14) Wheel hub: Aluminum alloy/or plastic
15) Battery type: 2 x 12V/20Ah, deep-cycle, AGM or gel
16) Battery dimensions: 178 x 168 x 77mm
17) Battery weight: 12.5lbs (each)
18) Battery charger: 5A off-board battery charger
