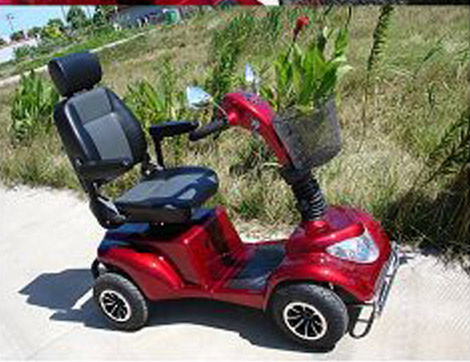

The Large Size Mobility Scooter (wisking1028)

The Large Size Mobility Scooter (wisking1028)
Price: Negotiable
Min Order: 1

Specifications

Prod Model: wisking1028

Product Description

Specifications of the large size mobility scooter:

1) Body colors: Champagne, candy apple red, viper blue
2) Battery: 55Ah 75 AH LEAD ACID
Option: Lithium battery long life 2000cycles.
No need change battery in 3 years
The cheapest lithium battery in China, best benefit for you.
3) Drive train motor voltage: 24V DC 36V DC
4) Front section weight: 80lbs
5) Ground clearance: 5" INCH
6) Max. Speed: 8mph 17KM/H OPTION
7) Length overall: 52"
8) Range per charge: Max. 50miles/75AH 80KM/ONE CHARGE
9) Seat upholstery selections: Gray or brown in vinyl and fabric

10) Seat post adjustment: 5
11) Seat to deck height: 16.5 - 19.5"
12) Seat to ground height: 23-26
13) Seat type: High-back CRS recline with adjustable headrest
14) Standard seat depth: 18"
15) Standard seat back height: 20.5 + HR (27 - 29 with HR) inches
16) Standard seat width: 18"
17) Tire size: Rear13"x 5.5-6 13x 6.5 -6
18) Total weight including standard batteries: 300lbs
19) Total weight w/o batteries-battery pack: 170lbs
20) Turning radius: 65"
21) Weight capacity: 400lbs
22) Weight heaviest piece when disassembled: 82lbs
23) Width overall: 24"
