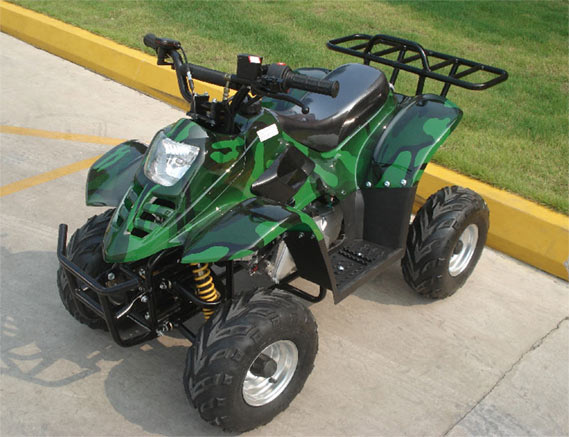

Sport Vehicle (KWS2-Q50)

Specifications

Prod Model:	KWS2-Q50

Product Description

Certificate: CE
1) Engine type: 50cc/70cc/90cc/110cc automatic clutch, air-cooled, single cylinder, 4 strokes.
2) Displacement: 49.46/106.7ml
3) Max. Power(Kw/r/min): 2.6/(8, 500 + - 5%), 5.0/8500
4) Max. Torque(N. M/r/min): 3.0/(7, 500 + - 5%), 6.7/6000
5) Compression rate: 9.4: 1/9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Front drum and rear hydraulic disc brake
9) Tire: 14.5X7.0-6(F/R)
10) Max. Speed: 45km/h
11) Battery: 12V x 5Ah
12) Seat height: 570mm
13) Wheel base: 820mm
14) Ground clearance: 80mm
15) Suspension: Front and rear hydraulic suspension
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 250 x 710 x 860mm
19) Max. Load: 80Kgs

Optional: Double Muffler, Rear rack.

Packing:
Steel frame and carton
Carton dimensions: 1, 150 X 670 X 560mm
Container: 68pcs/20", 136pcs/40", 136pcs/40"HQ
N. W: 72Kgs
G. W: 88Kgs
