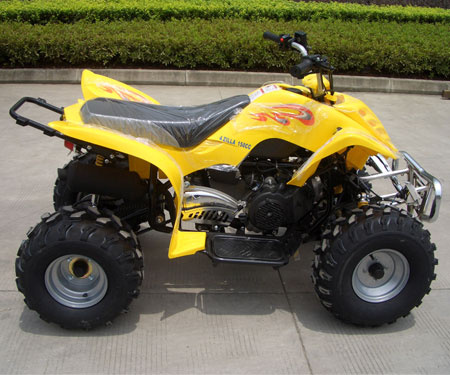

ATV (KWS10-Q150)

Specifications

Prod Model:	KWS10-Q150

Product Description

Certificate: CE
1) Engine type: 150cc automatic clutch, air-cooled, single cylinder, 4 strokes.
2) Displacement: 149.6ml
3) Max. Power: 7.0Kw/7, 500(r/min)
4) Max. Torque: 8.3N. M/6, 000(r/min)
5) Compression rate: 9.2: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: (F/R) drum / hydraulic disc brake
9) Tire: 18X9.5-8(F/R)
10) Max. Speed: 60km/h
11) Battery: 12V x 5Ah
12) Seat height: 680mm
13) Wheel base: 1030mm
14) Ground clearance: 100mm
15) Suspension: Front and rear hydraulic suspension, W /double "A" swing arms
16) Ignition type: CDI
17) Start system: Electric start, kick start
18) Dimensions: 1, 670x 920 x 1, 000mm
19) Max. Load: 150Kgs

Packing:
Steel frame and carton
Carton dimensions: 1, 480X850X750mm
Container: 28pcs/20"FCL, 63pcs/40", 66pcs/40"HQ
N. W: 135Kgs
G. W: 155Kgs
