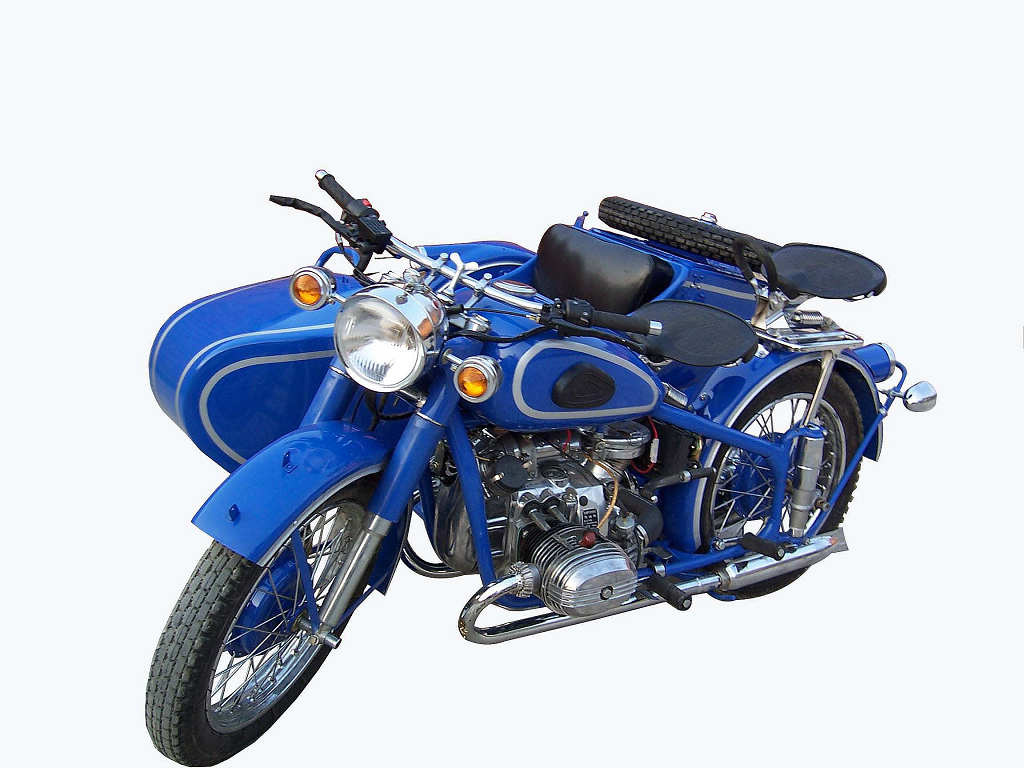

Sidecar (No. 3223)

Sidecar (No. 3223)
Price: Negotiable
Min Order: 1
Prod Model: M1S
Markets: North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certification: CCC
Engine Type: 4-Stroke
Type: Dirt Bike
Displacement: >250CC

Product Description

32HP polished surface
Blue color
Pinstripe Paint
BMW Style Gas Tank
Change the Carburetor
750 M 1S Motorcycle Main technical Data
Dimensions ( length×width×height)(mm)2400×1650×1000
Wheel base (mm)1420
Tread (mm)1100
Ground clearance (mm)135
Column reach (mm)60
Angle of column25°30′
Dry weight (kg)320
Max payload (kg)3 Persons + 100kg
Top speed   (km/h)85
Economic speed fuel consumption ( L 100km )6
EngineCJ 750F
Cylinder   diameter × stroke (mm)78×78
Total displacement746
Compression Ratio7+/-0.2:1
Max power and its corresponding speed (kW/r/min)25/5000+200
Applicable gasolineRQ-90
Applicable oil  HQ10 ( for summer) HQ 6 ( for winter)
Starting modeKick & Electric
Type of carburetor  PZ 28F
Capacity of gasoline tank (L)22
Oil capacity of crankcase (L)2
Oil capacity of gear box ( L)0.8
Oil capacity of rear drive ( L)0.175
ClutchMechanically controlled double-disc. Dry friction
Gear position No.1   Gear position No.2   Gear position No.3   Gear position No.4  3.6:1 2.29:1 1.71:1 1.3:1
Mode of driving shaftOne universal joint
Speed redecing ratio of rear drive4.62:1
Tyre size (inch)3.75-19
Tyre pressure (kpa)Front wheel     16kg /cm
Standard:packing: 2300*1600*1150(mm)
Productivity:1000 units/year
As one of the largest 750 motorcycle professional manufacturers in the country, the company possess a complete set of mould for bike s chassis, sidecar and other parts, etc. Besides, we also can provide a tailor-made fashion according to the customer s special requirement. The special equipments of painting, welding, assembling, testing could also be found in the place. Based on a long time and well built up cooperation with the domestic 750CC engine makers, and a strict quality control system for the bike, the 750m1m motorcycle made in this company has gained an excellent reputaion from bike riders in many countries and regions by its value of leisure, collection, classicality and reminiscence.
