Home Guangzhou Linye Electronics & Machinery Technology Co., Ltd. Sidecar (No. 2416)

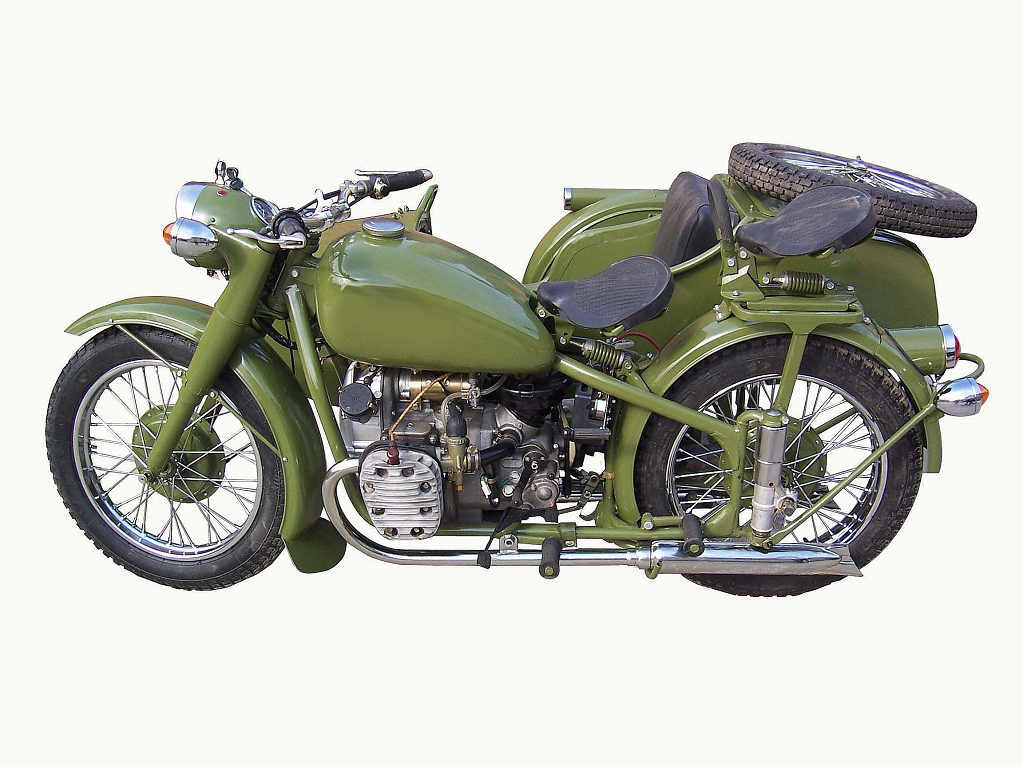

Sidecar (No. 2416)

Sidecar (No. 2416)
Price: Negotiable
Min Order: 1

Specifications

Prod Model: M1M
Markets: North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certification: CCC
Engine Type: 4-Stroke
Type: Dirt Bike
Displacement: >250CC

Product Description

24HP
Polished surface
750 M 1M Motorcycle Main technical Data
Dimensions ( length×width×height)(mm)2400×1650×1000
Wheel base (mm)1420
Tread (mm)1100
Ground clearance (mm)135
Column reach (mm)60
Angle of column25°30′
Dry weight (kg)320
Max payload (kg)3 Persons + 100kg
Top speed   (km/h)85
Economic speed fuel consumption ( L 100km )6
EngineCJ750D
Cylinder   diameter × stroke (mm)78×78
Total displacement746
Compression Ratio5.85:1
Max power and its corresponding speed (kW/r/min)17.7/4800
Applicable gasolineRQ-90
Applicable oil  HQ10 ( for summer) HQ 6 ( for winter)
Starting modeKick & Electric
Type of carburetor  PZ28D
Capacity of gasoline tank (L)22
Oil capacity of crankcase (L)2
Oil capacity of gear box ( L)0.8
Oil capacity of rear drive ( L)0.175
ClutchMechanically controlled double-disc. Dry friction
Gear position No.1   Gear position No.2   Gear position No.3   Gear position No.4  3.6:1 2.29:1 1.71:1 1.3:1
Mode of driving shaftOne universal joint
Speed redecing ratio of rear drive4.62:1
Tyre size (inch)3.75-19
Tyre pressure (kpa)Front wheel     16kg /cm
Standard:packing: 2300*1600*1150(mm)
Productivity:1000 units/year
