North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certification:
CCC
Engine Type:
4-Stroke
Displacement:
>250CC
Product Description
24HP
Polished surface
Cylindrical Muffler
Flashing dark green
Pinstripe Paint
BMW Style Gas Tank
Deluxe plating
Leather cushion

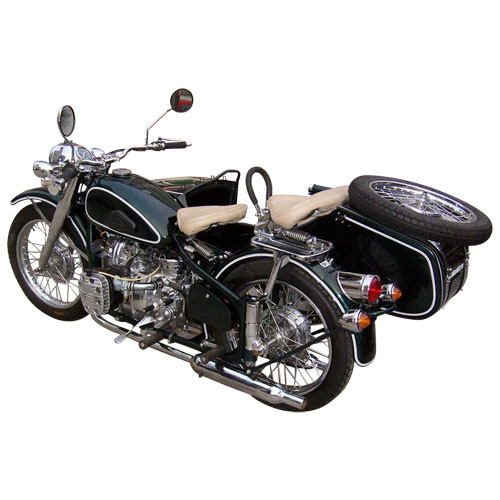

750 M 1M Motorcycle Main technical Data
Dimensions ( length×width×height)(mm)
2400×1650×1000
Wheel base (mm)
1420
Tread (mm)
1100
Ground clearance (mm)
135
Column reach (mm)
60
Angle of column
25°30′
Dry weight (kg)
320
Max payload (kg)
3 Persons + 100kg
Top speed (km/h)
85
Economic speed fuel consumption ( L 100km )
6
Engine
CJ750D
Cylinder diameter × stroke (mm)
78×78
Total displacement
746
Compression Ratio
5.85:1
Max power and its corresponding speed (kW/r/min)
17.7/4800
Applicable gasoline
RQ-90
Applicable oil
HQ10 ( for summer) HQ 6 ( for winter)
Starting mode
Kick & Electric
Type of carburetor
PZ28D
Capacity of gasoline tank (L)
22
Oil capacity of crankcase (L)
2
Oil capacity of gear box ( L)
0.8
Oil capacity of rear drive ( L)
0.175
Clutch
Mechanically controlled double-disc. Dry friction
Gear position No.1 Gear position No.2 Gear position No.3 Gear position No.4
3.6:1 2.29:1 1.71:1 1.3:1
Mode of driving shaft
One universal joint
Speed redecing ratio of rear drive
4.62:1
Tyre size (inch)
3.75-19
Tyre pressure (kpa)
Front wheel 16kg /cm
Standard:
packing: 2300*1600*1150(mm)
Productivity:
1000 units/year
As one of the largest 750 motorcycle professional manufacturers in the country, the company possess a complete set of mould for bike s chassis, sidecar and other parts, etc. Besides, we also can provide a tailor-made fashion according to the customer s special requirement. The special equipments of painting, welding, assembling, testing could also be found in the place. Based on a long time and well built up cooperation with the domestic 750CC engine makers, and a strict quality control system for the bike, the 750m1m motorcycle made in this company has gained an excellent reputaion from bike riders in many countries and regions by its value of leisure, collection, classicality and reminiscence.
