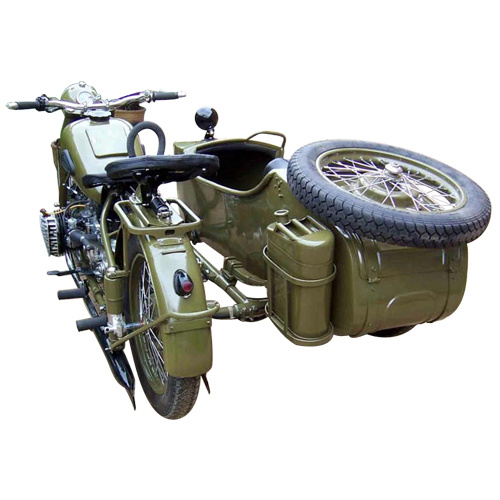

Sidecar (No. 2403)

Sidecar (No. 2403)
Price: Negotiable
Min Order: 1unit

Specifications

Prod Model: M1M
Markets: North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certification: CCC
Engine Type: 4-Stroke
Type: Dirt Bike
Displacement: >250CC

Product Description

24HP
Polished surface
BMW Style Gas Tank
Tri-color taillights
Anti-fog lights
Leather cushion
Oil drums
High temperature paint Muffler
750 M 1M Motorcycle Main technical Data

Dimensions ( length×width×height)(mm)

2400×1650×1000

Wheel base (mm)

1420

Tread (mm)

1100

Ground clearance (mm)

135

Column reach (mm)

60

Angle of column

25°30′

Dry weight (kg)

320

Max payload (kg)

3 Persons + 100kg

Top speed   (km/h)

85

Economic speed fuel consumption ( L 100km )

6

Engine

CJ750D

Cylinder   diameter × stroke (mm)

78×78

Total displacement

746

Compression Ratio

5.85:1

Max power and its corresponding speed (kW/r/min)

17.7/4800

Applicable gasoline

RQ-90

Applicable oil

  HQ10 ( for summer) HQ 6 ( for winter)

Starting mode

Kick & Electric

Type of carburetor

PZ28D

Capacity of gasoline tank (L)

22

Oil capacity of crankcase (L)

2

Oil capacity of gear box ( L)

0.8

Oil capacity of rear drive ( L)

0.175

Clutch

Mechanically controlled double-disc. Dry friction

Gear position No.1   Gear position No.2   Gear position No.3   Gear position No.4

3.6:1 2.29:1 1.71:1 1.3:1

Mode of driving shaft

One universal joint

Speed redecing ratio of rear drive

4.62:1

Tyre size (inch)

3.75-19

Tyre pressure (kpa)

Front wheel     16kg /cm



Standard:

packing: 2300*1600*1150(mm)



Productivity:

1000 units/year
