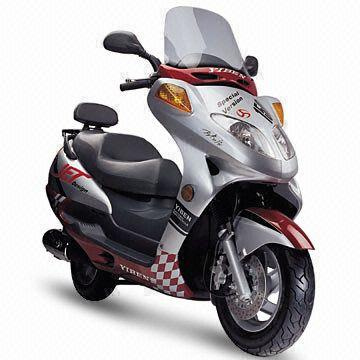

Scooter (TS250T-2) (EEC&DOT)

Specifications

Prod Model:	TS250T-2

Product Description

Product Explanation:
Dimensions: 2, 185 * 750 * 1, 420(L*W*H mm)
Wheelbase: 1, 510/1485(mm)
Groog Weight: 140/165 (kg)
Dry Weight: 128/150 (kg)
Max Load: 150 (kg)
Max. Speed: 80/120(km/h)
Oil tank capacity: 10(L)
Tyre and rim:
F. 4. 00-12/ R.: 4. 00-12
F. 130/70-12/R.: 130/60-12
Brake style: F. Disk / R. Disk
Absorber style: Independent hanging
Battery: 12V7AH
Engine type: YB157QMJ, YB172MM
Displacement: 149. 5/257(ml)
Eengine Style: Cylinder, Air-cooled, water-cooled, 4-stroke
Broe*stroke: 57. 4* 57. 8/72. 5*66. 8 (mm)
Ignition: C. D. I
Spark plug: A7RTC
Max power: 7. 0/14(Kw/7500/7000min-1)
Max torque: 8. 3/20(N. M/6000/6500min-1)
Max. Noise: 77/83(dB)
Impression Ratio: 9. 0: 1
Transmission type: Strap
Lubrication: Pressure Splash
Starting tyre: Eletrick/kick start
Oil consumption: <2. 8/ 3. 2L/100km
Clutch: Wet type, automatism centrifugal
