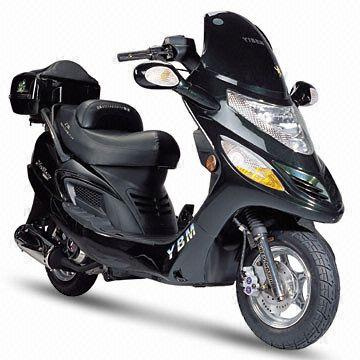

Scooter (TS125T-2) (EEC&DOT)

Specifications

Prod Model:	TS125T-2

Product Description

Product Explanation:
L*W*H*(mm): 2030*710*1190
Wheel Base (mm): 1400
Max. Speed (Km/h): 80
Max. Loading Capacity (Kg): 150
Brake System: F/R Disc / Drum
Fuel Tank Capacity(L): 6
Tire Size / Pressure Front (Kpa): 3. 5-10/220
Tire Size / Pressure Rear (Kpa): 3. 5-10/250
Engine Type: 4-Stroke, Single, Air Cooled
Engine Model: 152QMI
Bore*Stroke (mm): 52. 4*57. 8
Displacement (CC): 125
Compression Ratio: 9. 0: 1
Max. Power: 5. 2Kw/7500min-1
Max. Torque: 7. 6N. M/6000min-1
Ignition CDI
Starting System: Electric & Kick
Gear Oil Type: SAE 15W-40
Lubrication Type: Pressure / Splash
Max. Noise: 80dB(A)-3750min-1
Clutch Type: Automatic, Centrifugal
Transmission System: Belt
Dry Weight (Kg): 102
Packing: Iron Frame
EEC: 125cc
DOT&EPA: 150cc
