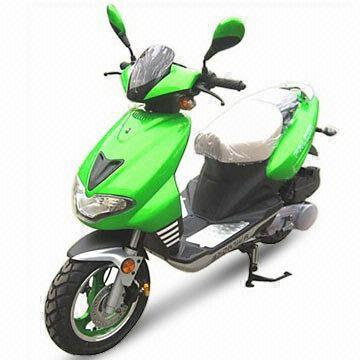

Scooter (TS150-7C) (DOT)

Specifications

Prod Model:	TS150-7C

Product Description

Product Explanation:
Dimensions: 1, 830 * 700 * 1, 180(L * W * H mm)
Wheelbase: 1, 300/1, 290(mm)
Groog Weight: 105/135 (kg)
Dry Weight: 88/116 (kg)
Max Load: 150 (kg)
Max. Speed: 40/80/85 (km/h)
Oil tank capacity: 4. 3 +/- 0. 1(L)
Tyre and rim:
F.: 120/70-12/ R.: 120/70-12
Brake style: F. Disk / R. Drum
Absorber style: Independent hanging
Battery: 12V7AH
Engine type: YB139QMB/YB152QMI/YB157QMJ
Displacement: 49. 5/124. 6/149. 6 (ml)
Eengine Style: Cylinder, Air-cooled, 4-stroke
Broe*stroke: 39*41. 5: 52. 4/57. 4* 57. 8 (mm)
Ignition: C. D. I
Spark plug: A7RTC
Max power: 2. 5/ 5. 6/7. 0(Kw/7500min-1)
Max torque: 3. 4/7. 8/8. 3(N. M/6500min-1)
Max. Noise: 70. 5/77. (dB)
Impression Ratio: 9. 2+/- 0. 1: 1
Transmission type: Strap
Lubrication: Pressure Splash
Starting tyre: Eletrick/kick start
Oil consumption: < 2. 0/3. 0L/100km
Clutch: Wet type, automatism centrifugal
Packing: Outer carton inner hob
EEC: 50cc, 125cc
DOT&EPA: 50cc, 150cc
