Specifications
Prod Model: |
MATRIX EVO DELIVERY |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ignition: |
Cdi |
Transmission: |
Automatic, 1 Speed |
Starting System: |
Electric / Kick |
Front Brake: |
Disc |
Rear Brake: |
Drum |
Colors: |
Black, Blue, Red, Silver |
Fuel Tank Capacity: |
5-8L |
Maximum Loading Capacity: |
≥120kg |
Engine: |
4 Stroke |
Certification: |
EEC |
Max Speed: |
>50km/h |
Displacement: |
125CC 150CC 170CC |
Product Description
UM is the registered brand of the United Motors Group. UM has become a multinational organization incorporating R&D, design, sales, marketing and after sale service of motorcycles.
1. Sporty, air-cooled, SOHC four-stroke two-valve engine puts out
Strong, predictable power with incredible gas mileage.
2. Engines are gear specially for delivery use, with lower torque and
Faster take off. Choose from three different engine sizes to meet
Your needs.
3. Easy and dependable electric starting with backup kick starter
Make starting a breeze.
4. Fully automatic V-belt transmission ensures simple, twist-the-
Throttle-and-go operation.
5. Complete instrument panel with analog Speedometer, odometer,
Fuel level, high beam and turn signal indicators.
6. Fuel efficiency of up to 98 mpg* estimated.
7. Redesigned frame geometry, strengthened key stress points and
Reinforced the suspension make this unit a true Commercial
Delivery Scooter
8. ABS injected Delivery Box with a 12V heated delivery bag; Can be
Locked with a key and switched on/off with a console mounted
Button.
9. Keyed front console storage compartment to store cell phone and
Other goodies, as well as convenient helmet or grocery bag hook in
The front lower console.
10. Large Delivery Box surfaces to display prominent company
Information, logos and advertising for free
11. Custom colors and lettering are available for large fleets.
12. Dual projector headlights maximizes nighttime visibility.

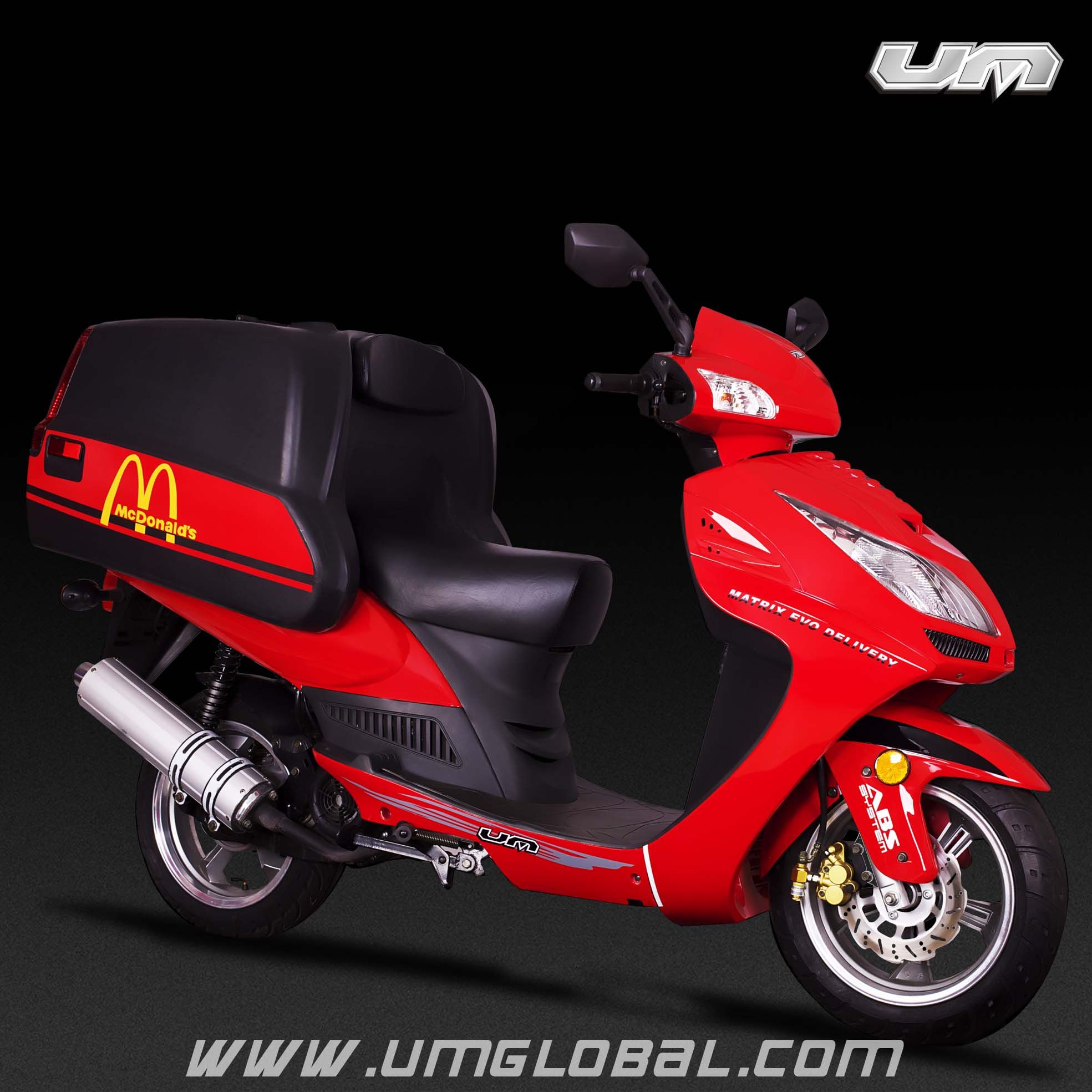

The Matrix EVO Delivery is a simple and practical concept that is changing the way Delivery is done. Delivery on scooters or motorcycles is not something new, however UM realized that it was not being done the right way. Traditionally companies purchase a regular motorcycle and install a regular box or basket to place the delivery items inside. These locally fabricated boxes or baskets are not insulated so they do not keep the food warm and fresh and they allow dust and smog particles filter through. Delivering products on a motorcycle is not as convenient as on scoter because the motorcycle has a higher center of gravity making it more unstable and the rider has to lift his leg up high to ride the bike, sometimes the rear box interferes with this creating trouble for the rider. These aftermarket boxes are installed in the rear rack of the motorcycle and extend out to the rear which creates an imbalance of the center of gravity of the motorcycle, sometimes a safety hazard. Finally these stock motorcycles or scooters are not designed for commercial use and abuse. So UM took the successful and powerful Matrix EVO and redesigned the frame geometry, strengthened key stress points and reinforced the suspension creating a true Commercial Delivery Scooter. Then UM studied many different delivery applications that the Matrix Delivery could be used for and the list was pretty extensive: Delivery for: Pizza, take-out food, groceries, pharmacy deliveries, printing services, packages, flowers, mail, beverages, etc. UM designed a Delivery Box that would accommodate all the above products in their different dimensions and created a fully insulated, ABS injected delivery box with a 12V heated delivery bag that is wired to the Matrix EVO and is activated by pressing a button; It can also be locked with a key. Rider comfort and ease of use is also very important which is why UM installed a padded back rest, center and side stand for easy parking, a front serrated disc brake for on-the-spot braking, large and prominent stop lights mounted to the delivery box as well as reflectors in different areas for rider safety. Not to mention the reliability and low maintenance cost of UM's, 4 stroke engines that can produce up to 98 mpg. So get your products going, put together a fleet of UM Matrix EVO Delivery scooters that will work for you.
|
SCOOTER MATRIX EVO DELIVERY |
MODEL NAME |
MATRIX EVO DELIVERY 125 |
MATRIX EVO DELIVERY 150 |
MATRIX EVO DELIVERY 170 |
ENGINE TYPE |
Single Cylinder, 4 Stroke, SOHC |
Single Cylinder, 4 Stroke, SOHC |
Single Cylinder, 4 Stroke, SOHC |
ENGINE DISPLACEMENT |
124.5cc |
149.5cc |
168cc |
BORE AND STROKE (mm) |
52.4 X 57.8 |
57.4 X 57.8 |
61X57.8 |
COMPRESSION RATIO |
9.2: 1 |
COOLING |
Air Cooled |
Air Cooled |
Air Cooled / Oil Assisted |
IGNITION |
CDI |
TRANSMISSION |
Automatic, 1 Speed |
FINAL DRIVE |
V-Belt |
STARTING SYSTEM |
Electric / Kick |
FUEL DELIVERY |
Carburetor |
FRONT SUSPENSION |
Telescopic Fork |
REAR SUSPENSION |
Hydraulic Dual Shock |
FRONT BRAKE |
Disc |
REAR BRAKE |
Drum |
FRONT TIRE |
130/60-13 |
REAR TIRE |
130/60-13 |
DIMENSIONS (LxWxH) |
1879 X 711 X 1270 mm |
SEAT HEIGHT |
889 mm |
WHEELBASE |
1351 mm |
FUEL CAPACITY |
5.6L (1.5GAL) |
DRY WEIGHT |
110 kg |
112 kg |
114 kg |
COLORS |
Black, Blue, Red, Silver |
