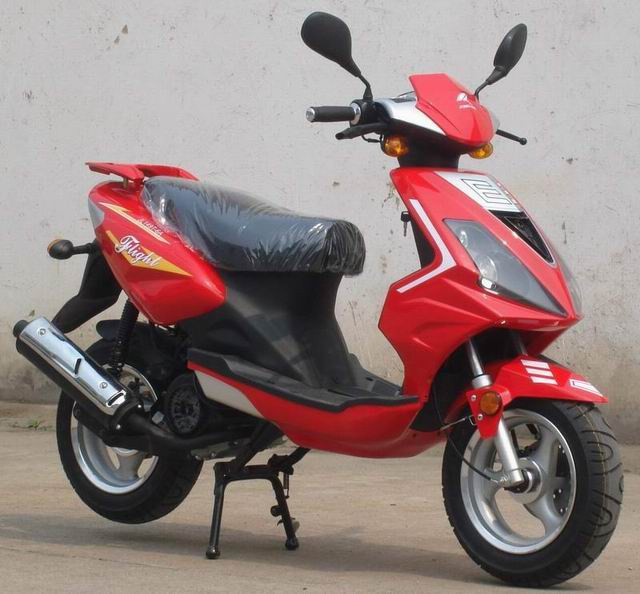

Scooter (JL50AT-6A)

Specifications

Prod Model:	JL50AT-6A

Product Description

Overall Length(mm): 1830mm
Overall Width(mm): 680mm
Overall Height(mm): 1140mm
WheelBase(mm): 1290mm
Ground Clearance(mm): 140mm
Dry Weight(kg) 89kgs
Max. Load Mass(kg): 150kgs
Max. Speed(km/h): 45km/h or 25km/h
Tire: Front: 90/90-12 Rear: 90/90-12
120/70-12 130/70-12(Option)
Driving Mode: C. V. T
Brake Mode: Front: Disk Rear: Drum
Brake Operation Mode: Front: By Hand Rear: By Hand
Engine: JL139QMB
Engine Type: Single Cylinder Four Stroke
Cylinder Type: Horizontal
Bore X Stroke(mm): Dia. 39 X 41.5mm
Piston Displacement(cc): 49.5cc
Compression Ratio: 10.5: 1
Max. Torque(N. M/rpm): 3.0/6000N. M/rpm
Lubrication: Compress & Splash Combined Type
Max. Output Power(kw/rpm): 2.3/8000kw/rpm
Ignition: C. D. I
Started System: Electric Starter/Kick Starter
Engine Cooling: Forced Air Cooling
Transmission: Stageless Transmission
Clutch: Dry\Multi-Disc Type
Battery: 12V-4Ah
Fuel Capacity(L): 6L
Average Consumption(L/100km): 2.0L/100km
Air Pressure of Tires: Front 200kpa; Rear 225kpa
