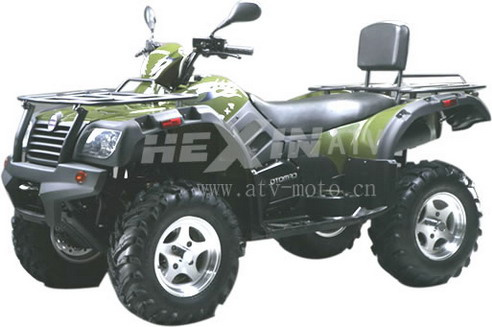

Sandstorm (HX-ATV500Acc)

Specifications

Prod Model:	HX-ATV500A

Product Description

HXATV500-A PARAMETER
Overall Length--2385mm(94 in)
Overall Width--1170mm(46.1 in)
Overall Height---1230mm(48.5 in)
Seat Height----900mm(35.5 in)
Wheelbase---1490mm(58.7 in)
Minimum Ground Clearence----275mm(10.8 in)
Minumum Turning Radius----4750mm(187.2 in)
Max. Speed----80km/h(49.7 mph)
Transmission----CVT, P/R/N/H/L
Suspension-----4 wheels independent suspension
BrakeF--Dual disc brake R---Single disc bake
Tire Size--F---AT25*8-12(185/88-12)R---AT25*10-12(270/60-12)
Fuel Capacity---19L(5.02 US gal)
Front Rack---35kg(77.2 lb)
Rear Rack----70kg(154.3 lb)
Hitch Towing Capacity----1133.8kg(2500 lb)
Dry Weight (incuding battery and fuel)----365kg, 804.8 lb
Engine Type----Liquid-cooled 4-stroke, SOHC
Cylinder Arrangement-----Forward-inclined single cylinder
Carburator ----MIKUNI BSR36-89
Displacement ----493cc
Bore * Stroke----87.5*82mm(3.44*3.23 in)
Compression Ratio----10.2: 1
Power----24kw/6500r/min(Euro type: <15kw)
Max. Torque----38.8N. M/5500r/min(Euro type: 30N. M/4500r/min)
Oil Capacity----2.2L(0.58 US gal)
Starting System-----Electric and manual recoil starter
Lubrication System----Wet sump
