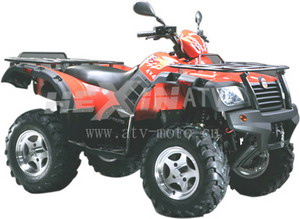

Home Hexin Auto Distribution Co., Ltd. Roar (HX-ATV500cc)
Specifications
| Prod Model: | HX-ATV500 |
|---|
Product Description
HXATV500 PARAMETEROverall Length: 2185mm(86.1 in)
Overall Width: 1170mm(46.1 in)
Overall Height: 1230mm(48.5 in)
Seat Height: 900mm(35.5 in)
Wheelbase: 1290mm(50.8 in)
Minimum Ground Clearence: 275mm(10.8 in)
Minumum Turning Radius: 4000mm(157.6 in)
Max. Speed: 80km/h(49.7 mph)
Transmission: CVT, P/R/N/H/L
Suspension: 4 wheels independent suspension
Brake: F: Dual disc brake R: Single disc bake
Tire Size; F: AT25*8-12(185/88-12)R: AT25*10-12(270/60-12)
Fuel Capacity: 19L(5.02 US gal)
Front Rack: 35kg(77.2 lb)//Rear Rack: 70kg(154.3 lb)
Hitch Towing Capacity: 1133.8kg(2500 lb)
Dry Weight (incuding battery and fuel): 350kg, 771.8 lb
Engine Type: Liquid-cooled 4-stroke, SOHC
Cylinder Arrangement: Forward-inclined single cylinder
Carburator: MIKUNI BSR36-89
Displacement; 493cc
