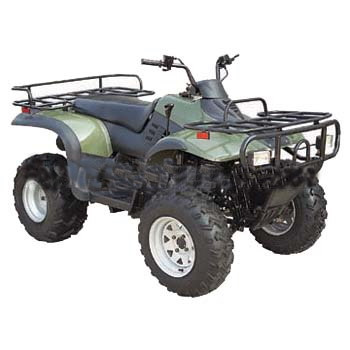

Home Yongkang Huawei Motor Ltd. Quick Horse
Product Description
Engine Type:1-cylinder; 4-strockDisplacement:260 cc
Max power:12.5KM/7500kW/r/min
Max torque:17.6Kw/5500N.m/r/min
Cooling:Water Cooled
Lubrication:Wet Sump
Ignition:C.D.I
Starting:Electric
DRIVE TRAIN
Final Drive:Shaft driven
Transmission:C.V.T
SUSPENSION
Front Suspension:Hydraulic, Dual Swing Arm, Dual Shock-absorber System
Rear Suspension:Rear Swing Arm, Central hydraulic Shock-absorber
BRAKE
Front/Rear Brake:Hydraulic Front/Rear disc
Auxiliary Brake:Rear hydraulic disc
Parking:Hydraulic disc, all wheel
TIRE
Front Tire:AT 24*8-12
Rear Tire:AT 24*11-10
DIMENSIONS
L*W*H:82.5in*46in*47in/2096mm*1170mm*1170mm
Seat Height:34in /865mm
Wheel Base:49.7in /1265mm
Turn Radius:129in / 3277mm
Ground Clearance:7.5in /190mm
Dry Weight:616 Lbs /280kg
LOAD CAPACITY
Front Rack:40 Lbs / 18kg
Rear Rack:80 Lbs / 36kg
Hitch Towing:450 Lbs / 200kg
ELECTRICAL
Battery:12V 14AH
Head Light:35W/35W
Brake/Tail light:21W/5W
Container Loading:30pcs/40' HQ
We are a large ATV manufacturer in Yongkang China, the products of our factory are of high quality and lower price, and also it has novel appearances it enjoy wide popularity all around the world.
