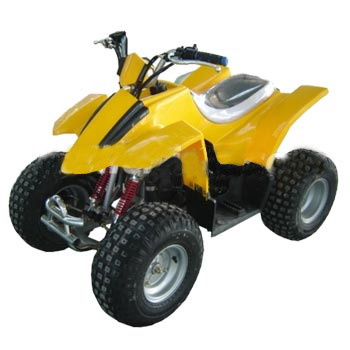

Home Yongkang Huawei Motor Ltd. Attracted ATV
Specifications
Product Description
1) Max. Speed (km/h): 352) Type: Forced air-cooled, 4 strokes, OHC, CVT
3) Cylinder arrangement: Forward inclines single cylinder
4) Displacement: 50cc
5) Bore x stroke: 39 x 41.4mm
6) Compression ratio: 10:01
7) Starting system: Electric starter/kick starter
8) Lubrication system: Oil pump
9) Type: Tubeless
A) Front: 16 x 8-7
B) Rear: 16 x 8-7
10) Front suspension: Swing-arm
11) Rear suspension: Swing-arm
12) Front shock absorber: Coil spring/Oil damper
13) Rear shock absorber: Coil spring/Oil damper
14) Ignition system: C. D. I
15) Generator system: C. D. I magnet
16) Front brake: L & R drum brake
17) Rear brake: Disc brake
18) Brake Performance: 944N
19) Maximum power kW(r/min): 2.5/7200? 00
20) Maximum Torque (N. M. /rpm): 3.0/5500 00
21) Dry weight: 87kg
22) Rider capacity: 50kg
23) Vehicle dimensions: 1280 x 470 x 880mm
24) Ground clearance: 170mm
Outer packing:
Carton dimensions: 1162 x 720 x 720mm
