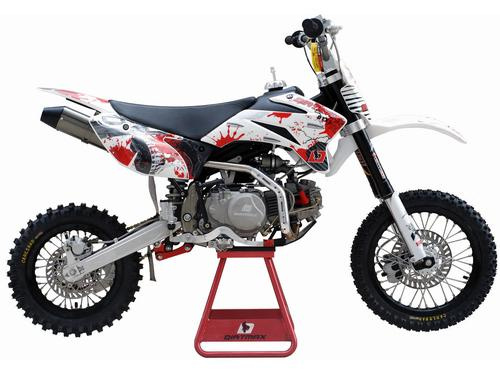

Home Guangzhou Dirtmax Motorsports Co., Ltd. Pitbike (DTX5)
| Prod Model: | DTX5 |
|---|---|
| Engine Type: | 4-Stroke |
| Type: | Dirt Bike |
| Displacement: | 49cc-172cc |
Product Description
ENGINEEngine type: Single cylinder, 4 stroke N-1-2-3-4, all up
Displacement: 150CC
Box X stroke: 60x53mm
Compression ratio: 9.0: 1
Starter: Kick start
Carburetor: MOLKT
Lubrication: Pressure lubrication
Cooling: Oil cooling, double
Clutch: Wet multiple-plate
CHASSIS
Frame: Chormolly with Aluminum DRESS UP on both legs
Sup-frame: Chromolly
Front suspension: Aluminum, 45/48mm diameter, 735mm length
Rear suspension: 320mm with linkage fork
Brake, front & rear: 220/190 round shape
Rim, front & rear: 1.4-14, 2.15-12, steel
Hub: Aluminum
Tire, front & rear: 2.50-14, 3.00-12
Chain: 428#
Exhaust pipe: 38/42mm
Steering angle: 93
Wheel base: 1200mm
Seat height: 780mm
Ground clearance: 300mm
Tank capacity: : 7.5L
Net weight(without fuel): 71kg
Established in 2004, guangzhou dirtmax motorsports Co., Ltd. We are a professional manufacturer and exorter for pitbike miniGP engine and parts in China. We have been supplying high qualiy products to all around the world by OEM or with brand dirtmax.
