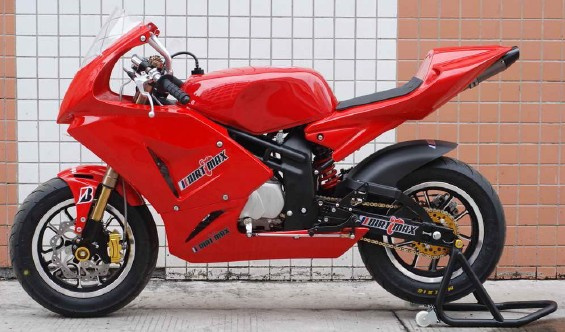

Home Guangzhou Dirtmax Motorsports Co., Ltd. MiniGP (GP150R)
| Prod Model: | GP150R |
|---|---|
| Certification: | CCC |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Displacement: | 125CC, 150CC |
Product Description
Model: Gp150rLength × Width × Height: 1590 × 595 × 911mm
Wheelbase: 1150mm
Ground clearance: 123mm
Seat height: 681mm
Casterangle: 23° 36'
Dry weight: 83.6kg
Engine
Displacement: 150CC
Engine type: Single cylinder, 4 stroke n-1-2-3-4, all up
Box x stroke: 60x53mm
Gear: 4 speed
Max power: 15HP
Start method: Kick start or e-tart
Start lever: Steel
Ignition: Cdi
Cooling type: Oil cooling
Clutch: Manual clutch
Carburetor: Dirtmax
Ignition: Outer type
Chassis
Frame assy: Steel
Swing arm: Aluminum
Handle bar: Aluminum
Throttle assy: Aluminum
Clutch lever: Aluminum
Front fork: USD type, rebound and compression adjustment length: 600mm, stroke: 70mm; Spring: 18pd, diameter: 45/48mm
Rear shock: Rebound and compression adjustment, length: 218mm, stroke: 37mm, spring: 1000pd
Clamp: Material: Aluminum, color: Ti, silver, black, machining method: CNC
Rim: Material: Aluminum, front/rear: 2.50-12, 3.00-12
Tire: Front/rear: 120/90-12 120/80-12
Sprocket: Front/rear: 16/37t, 7075 aluminum
Chain: 420#, kmc
Brake paddle: CNC, alloy
Brake front/rear:
Disc front/rear: 220/190mm, 4/1 pistons
Exhaust pipe: Material: Stainless steel
Muffler:
Material: Aluminum, machining method: CNC
Seat assy: Foam
Plastics assy: Fiber glass
Fuel tank: Steel
Foot rest: Aluminum, CNC machined
Established in 2004, guangzhou dirtmax motorsports Co., Ltd. We are a professional manufacturer and exorter for pitbike miniGP engine and parts in China. We have been supplying high qualiy products to all around the world by OEM or with brand dirtmax.
