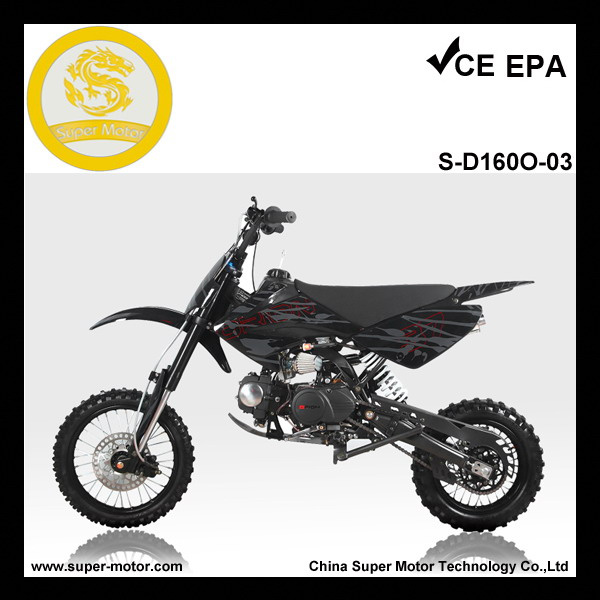

Home China Super Motor Technology Co., Ltd Pit Bike (S-D160O-03)
Specifications
| Prod Model: | S-D160O-03 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | CE EPA Pit Bike |
| Certification: | CE |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
Pit Bike / CE EPA Pit Bike / 50CC~160CC Pit BikeEngine
Type: Zongshen 160CC single-cylinder, 4-stroke, oil-cooled
Bore x Stroke: 60.0 x 57.0mm
Max power: 10kw(9000r/min)
Starting system: Kick start
Max speed: 70km/h
Compression ratio: 10.0: 1
Ignition: CDI
Suspension/Brake/Wheels
Suspension/front: Hydraulic Forks
Suspension/rear: Spring over Coil
Brake/front: Hydraulic disc
Brake/rear: Hydraulic disc
Wheels/front: 2.5-14
Wheels/rear: 3.0-12
Dimensions/Packing
LxWxH: 1700 x 780 x 1100mm
Wheelbase: 1260mm
Ground clearance: 320mm
Tank capability: 3.2L
Carton size L/W/H: 1240 x 380 x 690mm
Qty/20FCL: 80PCS
Qty/40FCL: 170PCS
Qty/40HQ: 197PCS
Others
Frame/Swing Arm: High Strength Steel
Clutch: Manual
G. W/N. W: 84kg/67kg
Seat Hight: 820mm
