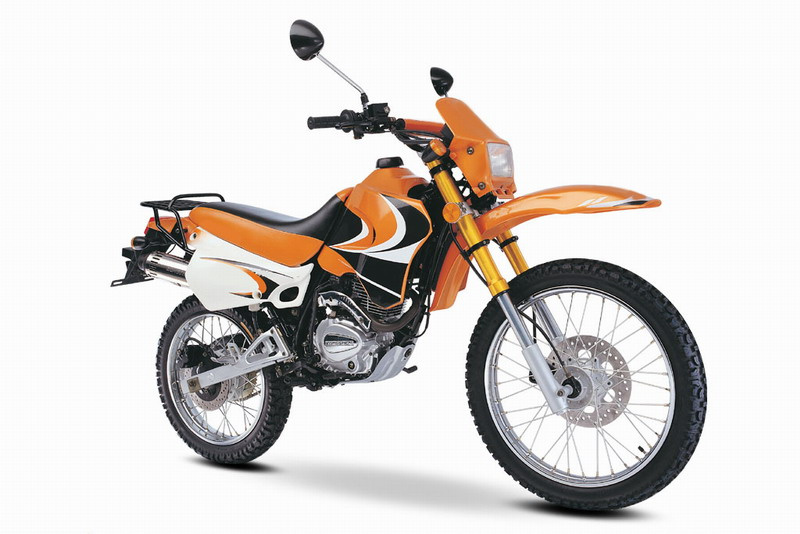

Home Shannan Jinying Motorcycle Co., Ltd. Off Road EEC Motorcycle (JY200GY)
Specifications
| Prod Model: | JY200GY |
|---|
Product Description
Engine type: Air cooled, 4 stroke, single cyclinderStroke: 63. 50mm
Displacement: 196. 98ml
Max. Power output: 10. 6kw/7500min.
Max. Torque: 13. 5n. M/6500min.
Appr. Fuel consumption: 2. 1l/100km
Starter system: Electric/kick
Demensions(l*w*h): 2180*810*1180mm
Wheelbase: 1360. 00mm
Ground clearance: 250. 00mm
Fuel capacity: 8. 00l
Suspension(fr. /rr. ): Hydraulic-pressed spring style/hydraulic-pressed spring style
Brakes front/rear: Disc/disc; Disc/drum
Dry weight: 120. 00kg
Wheel size(fr. /rr. ): 1. 6*21/2. 15*18
Wheel type: Spoke
Colors: Red, blue, green, yellow
Package1: Carton+iron frame
Packing size1: 1800*565*1080mm
Disassembled parts: Fr. Wheel, fr. Mudguard, handle bar, rr. View mirror,
Load q'ty: 20'gp=24units 40'gp=52units 40'hq=52units
Package: Wooden box
Packing size 2: 1860*570*1060mm
Disassembled parts: Fr. Wheel, fr. Mudguard, handle bar, rr. View mirror,
Load q'ty 20'gp=24units 40'gp=50units 40'hq=50units
