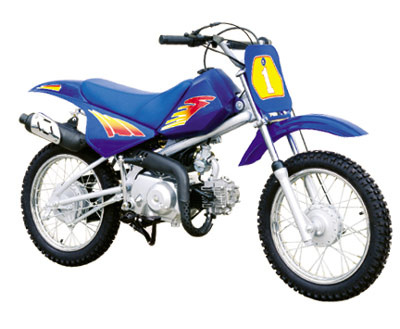

Off Road Air-Cooling Motorcycle (JY70PY)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
Specifications
| Prod Model: | JY70PY |
|---|
Product Description
Dimension ((L*W*H)mm): 1550x660x880Wheel base(mm): 950
Min.Ground clearance (mm): 150
Rim type: spoke Dry weight(kg): 68
Fr. Tyre size and air pressure: 2.50-14/175KPa
Rr. tyre size and air pressure: 2.50-14/200KPa
Fr. Brake: drum Rr. brake: drum
Max.loading capacity(kg): 75
Max. Speed (km/h): 45
Economical fuel consumption (l/100km): 1.6
Break Performance: ≤7m/30km/h
Max. Fork advancing angel:10
Max. Voice (dB(A):80
Engine model: 1P47FMD
Engine type: single-cylinder, air-cooled,four-stroke
Bore X Stroke (mm): 47x41.4
Displacement (ml): 72
Compression ratio: 7.0:1
power (kw/r/min): 3.6/7500
Max.torque (N.m/r/min): 5.6/5000
starting mode: Electric Start/Kick Start
Ignition mode: CDI Electronic ignition
package way: Iron and Seven-layer carton
