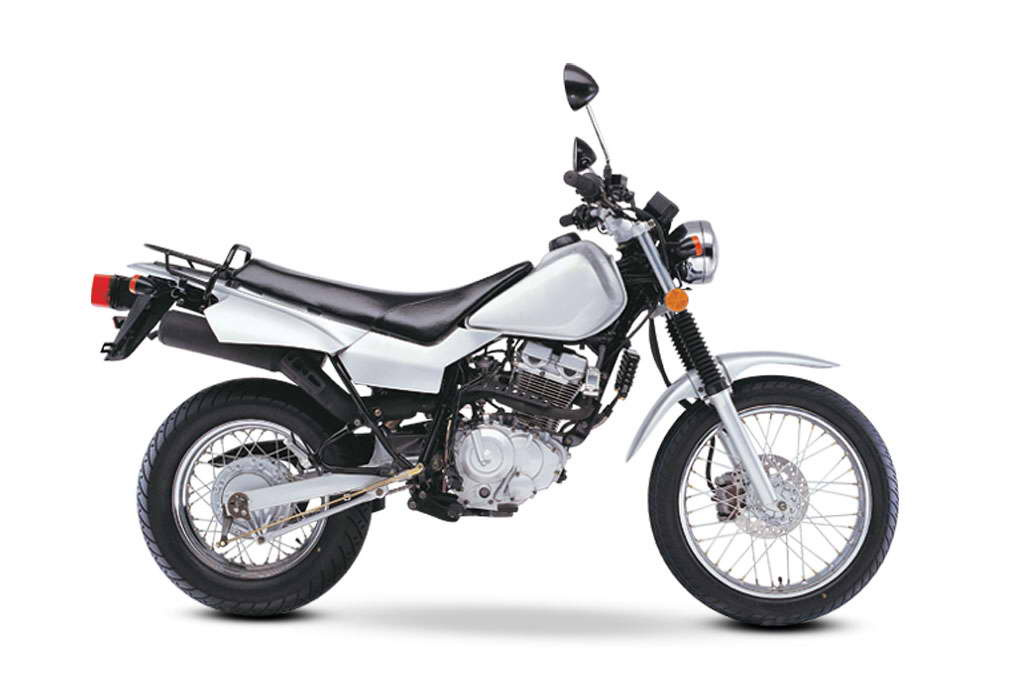

Home Shannan Jinying Motorcycle Co., Ltd. Off Road, EEC Motorcycle (JY125GY-2)
Specifications
| Prod Model: | JY125GY-2 |
|---|
Product Description
Engine type: Oil cooled, 4 stroke, single cyclinderStroke: 48. 80mm
Displacement: 124. 50ml
Max. Power output: 8. 50kw/9500min.
Max. Torque: 9. 4n. M/8000min.
Appr. Fuel consumption: 2. 1L/100km
Starter system: Electric/kick
Demensions(l*w*h): 2100*800*1100mm
Wheelbase: 1340. 00mm
Ground clearance: 250. 00mm
Fuel capacity: 8. 2L
Suspension(fr. /rr. ): Hydraulic-pressed spring style/hydraulic-pressed spring style
Brakes front/rear: Disc/brake
Dry weight: 124. 00kg
Wheel size(fr. /rr. ): 2. 15*18/2. 75*15
Wheel type: Spoke
Colors: Black, red, blue
Package 1: Carton+iron frame
Packing size 1: 1800*565*1080mm
Disassembled parts: Fr. Wheel, fr. Mudguard, handle bar, rr. View mirror,
Load q'ty 20'gp=24units 40'gp=52units 40'hq=52units
Package 2: Wooden box
Packing size 2 (a): 1860*570*1060mm
Disassembled parts: Fr. Wheel, fr. Mudguard, handle bar, rr. View mirror,
Load q'ty 20'gp=24units 40'gp=50units 40'hq=50units
Packing size 2 (b): 1805*565*860mm
Disassembled parts: Rr. Mirror, electrolyte, fr. Fender & accessories, rr. Carrier, side covers, handbar, cowling cover, headlight, fr. Wheel assy., fr. Axle, handle clip, fr. &rr. Damper, air cleaner
Load q'ty 40'hq=78units
