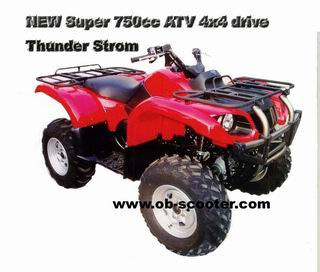

OB-Super New 750cc 4x4 ATV

Specifications

Product Description

Packing Size: 2200x 1200 x 1000 mm
Overall dimensions: 2260*1260*1260mm
Wheelbase: 1370mm
Min ground clearance: 200mm
Turning radius: <3500mm
Dry weight: 320kg
Max total weight: 570kg
Max speed: 60km/h
Climbing angle: 20
Drive system: 4-wheel -drive
Brake system: Disc

Engine type: Horizontally opposed, dual-cylinder, four-stroke, water-cooled
Bore*stroke: 78*78mm
Total displacement: 746m3
Standard power output: 20kw/5000rpm
Maxpower output: 22kw/5500rpm
Max. Torque: 50n. M/3000-4000rpm
Starting mode: Electrical and kick starting
Ignition mode: CDI
