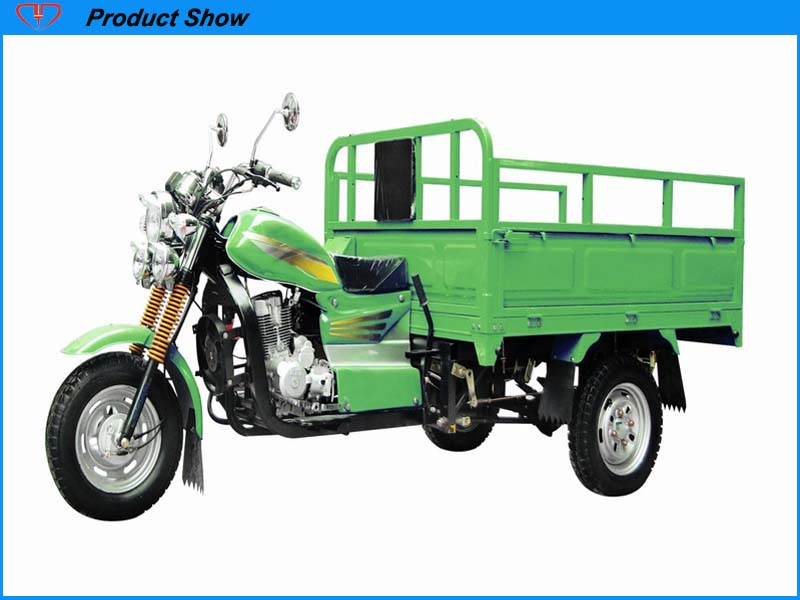

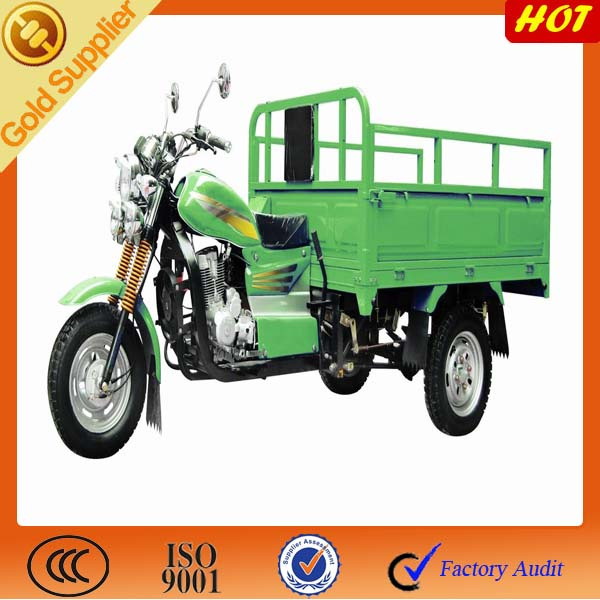

New Open Three Wheeled Motorcycle

New Open Three Wheeled Motorcycle
Price: US $ 790-840/Piece
Trade Terms: FOB
Min Order: 24/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: DJ150ZH
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Color: Optional
Engine Type: 4-Stroke
Displacement: 126-250CC
Certification: CCC
Type: Racing Motorcycle
Fuel: Gas / Diesel
Condition: Used

Product Description

                                           Chongqing Tengtian Technological Develop Co., Ltd.
Product NameBest new 175cc 3 wheel motorcycles for sale
Product Technical Specifications(General Information)
Part I
Technical Design
ApplicationCargo&passengers Transport
Design Max Speed60 km/h
Loading Capacity300-500 kg
Unladen Kerb Weight300 kg
Dimension(L*W*H)3155x1250x1430 mm
ColorRed/Green/Yellow/Black/Other colors
Track1050 mm
Wheel Base2100 mm
Ground Clearance160 mm
Brake ModeFront&Back wheels, Drum
Transmission TypeShaft Drive
Power8.0 kw
Cool TypeWater Cooled
Min.Fuel Consumption354g kw.h
Fuel TypeGasoline
Fuel Tank Capacity12 L
Part II
Engine Details
Engine TypeSingle cylinder,4-stroke,camshaft downward
Bore Stroke63.5×49.5mm
Fuel TypeGasoline
Compression Ratio9.5:1
Rated Power&Rotating Speed8.0 kw /8000rpm
Max.Torgue/Rotating Speed11.0N.m /6500rpm
Lowest No-Load Speed Stability1500rpm
Displacement(cc)156ml
Ignition SystemCDI
Apply toMotor tricycle
StarterKick/Electric
Part III
Operation
Starting SystemElectric/Kick
Transmission4 Forward &1 Reserse Gears
Gearshift ControlManual-Foot
Clutch MethodManual-Hand
Brake Operate ModeManual-Hand or Foot
Part IV
Packaging
TransportBy Land/Sea/Other
Port Of LoadingChongqing/Shanghai/Other ports of china
PackageProtective Packaging /CKD,SKD
Loading Capacity (CKD)22 units in 20"GP,54Units in 40"HQ
Delivery Time (from loading port)20-25 Days after receiving advance payment
Please Note:
*All sizes are approximate,any other sizes are available according to customers' special requests.
*For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd.
*Any details of the motor tricycle should subject to our final confirmation before ordering.

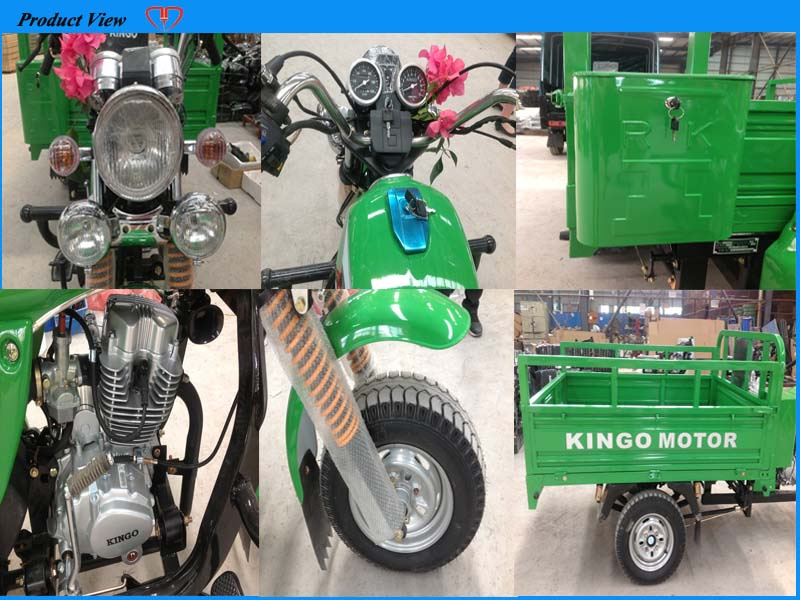

..................................SHOW TIME..........................................................................






Brief Introduction



Economic and easy to use

Tricycles vary from size to color



Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.


Why should you choose us?


1. We Tengtian Technological offer outstanding products:

2. Choose us Tengtian Technological, you can get:
