Specifications
Prod Model: |
TT250F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
New Four Wheel ATV Fire Fighting Truck |
Loading Capacity: |
300kg |
Speed: |
60km/H |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
250CC |
Transmission System: |
Shaft Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Drum Brake |
Maximum Speed: |
<50 km/h |
Power: |
800-1000W |
Certification: |
DOT |
Condition: |
New |
Brand: |
OEM |
Product Description
The main technical parameters of the vehicle:Model: XMC4JB / 9.6-ATV250;
outside dimensions (mm): 2180 × 1080 × 1885
Wheelbase (mm) 1150 Ground Clearance (mm) 155
Brake hydraulic brake / disc brakes front and rear laden mass (kg) 470
Maximum speed (km / h) 50 Transmission shaft drive
Sirens have propaganda;
its function to play U disk LED lights long row of lightsThe main technical parameters of engine:Engine model 171FMM Engine type single cylinder, air-cooled, four-stroke
Cylinder capacity 229.6 (ML) Starting method electric start / recoil start
Ignition CDI maximum power / speed [KW / [r / min]] 11/6500
Clutch type automatic clutch Lubrication Pressure Splash
Five-speed gear mode / acyclic Reverse External
Fire Equipment Specification / Quantity
Product Specifications Model Number Name Type Quantity
Hand-carried mobile pumps JBQ5.3 / 9 1 sets fire extinguisher ABC / 4kg dry powder 6
Hose 13-65-20 4 DC gun 19 type 1
Fire bolt spanner wrench on the ground a fire ax to a long wooden
1 set of storm hood storm hood vehicle equipment box and the pump 1 set

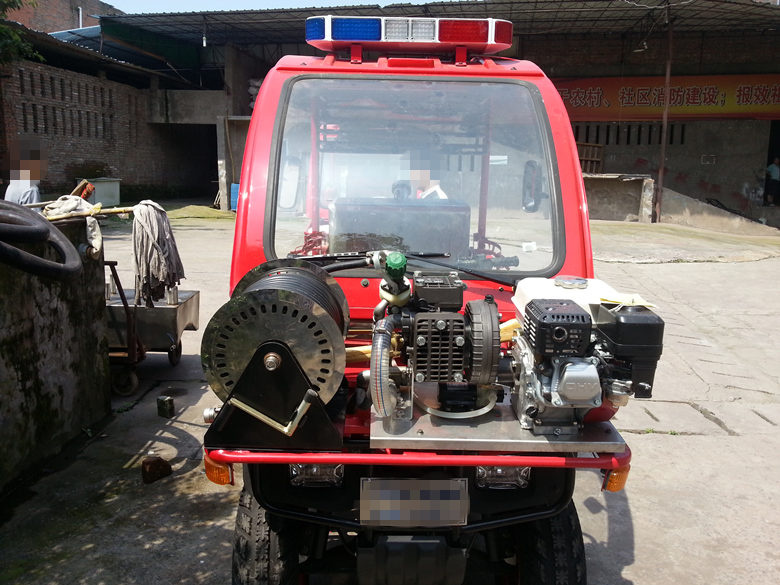

Hand-carried motorized pump parameters:
Start: electric start / recoil start power: 9.6kw (13 horsepower) Flow (L / min): 540 entrance / exit diameter (mm): 65/65 self-priming rotary vane vacuum
Economic and easy to use
- Humanized configuration: Motorized tricycles replaced traditional labor force transportation, more convenient and faster, save your costs both on energy and time. Especially very powerful and useful when transporting large and heavy goods and driving roads with serious condition.
- Low maintenance: With correct using, the robust and reliable body & power source of tricycles will keep health for a long time. Do not need to maintain frequently. Daily inspection and cleaning can be easy finished by yourselves in your garden or before your house door. All these require little maintenance fee.
- Wide range of application: Allows transporting grain, bullamacow, fertilizer, water, silt, coal, metals, wood, fruit, aquatic product, passengers and more, as long as you can think and you need. With one tricycle in your house, it will be your good helper both on daily life and work. Therefore it is very effective and productive.
- Ready to use: The operating system of cargo tricycle is very easy to handle, and much closer to common users. Its simplicity allows many operators to use without in-depth training.
Why should you choose us?
1. We Tengtian Technological offer outstanding products:
- High quality and reasonable price.
- Strong power and low engine consumption.
- Stable and durable frame for cargo tricycle.
- Electrophoresis dipping process paint, anti-corrosion ability is significant, ensure color durability.
- Super loading ability, suitable for bad or mountain roads driving.
2. Choose us Tengtian Technological, you can get:
- Professional quality control system, ensure each part with our best quality.
- Perfect production assembly line, ensure delivery on time.
- Outstanding export teamwork, ensure thorough after-sale services.
- Specialized in cargo tricycles design, manufacture and export more than 8 years, had built an excellent business reputation.
- Well know about foreign market, especially South America, Africa, Southeast Asia, and Middle East.
- "Do our best, be your best" is our aim. Your trust, we treasure.
