Specifications
Certification: |
EEC |
Displacement: |
300CC |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Transmission System: |
Chain Drive |
Product Description

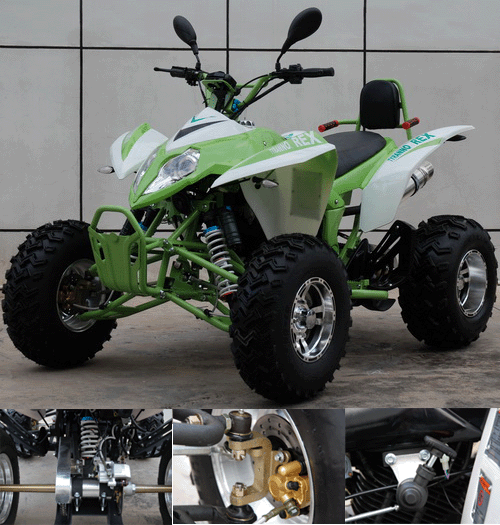

FW-ATV-350EEC
Description:
Engine type: 350cc, 6-5-4-3-2-1-0-R (ZS183FMP )
Cooling Air cool
Max horsepower: 17KW
Max torque: 24.0N. m
Bore*stroke: 63.5mm
Max speed: 90km/h
Climbing ability: 30 degree
Ignition: C. D. I
Starting system: Electric start
Battery: 12V9Ah
Engine oil: 1.5L
Gear oil: 1.1L
Driveline: Chain drive
Driving wheel: Rear two wheels
Suspension: front/rear Double swing arms
Brakes: front disk/rear disk
Tire: a)Front: 23x7.0-10 b)Rear: 22x10.0-10
Wheelbase: 1250mm
Product size: 1860x1270x1130mm
Height to seat: 860mm
Min ground clearance: 130mm
N. W. /G. W.: 221KG/261KG
Packing size: 170*112*83cm
20ft: 12pcs / 40ft: 28pcs / 40HQ: 42pcs
