Specifications
Certification: |
EEC |
Displacement: |
300CC |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Transmission System: |
Chain Drive |
Product Description

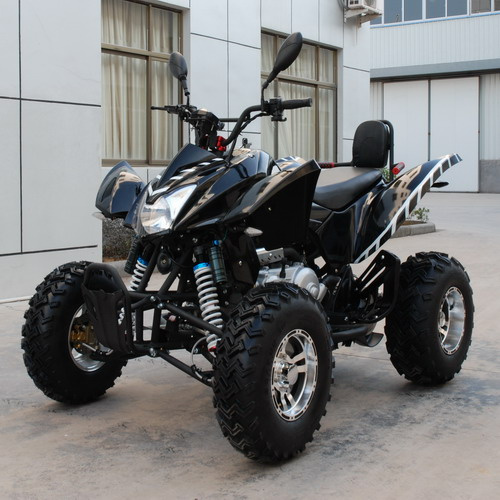

FW-ATV-300EEC
Description:
Engine type: 300cc CVT (XD178MN ), 2X4 WD
Cooling :water-cooled
Max horsepower:13KW
Max torque:21.0N.m
Bore*stroke:60mm
Max speed:80km/h
Clmbing abolity:30 degree
Ignition:C.D.I
Starting system:Electric start
Battery: 12V9Ah
Engine oil:1.5L
Gear oil:1.1L
Driveline :Chain drive
Driving wheel:Rear two wheels
Suspension:front/rear Double swing arms
Brakes:front disk/rear disk
Tire: a)Front:23x7.0-10 b)Rear:22x10.0-10
Wheelbase:1250mm
Product size: 1880x1280x1100mm
Height to seat :820mm
Min ground clearance:130mm
N.W. : 221KG
G.W. : 262 KG
Packing size: 170*112*83cm
20ft: 12pcs
40ft: 28pcs
40HQ: 42pcs
