Specifications
Prod Model: |
GM250YZF-R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
EEC/Coc |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
EEC |
Type: |
Racing Motorcycle |
Fuel: |
Gas / Diesel |
Condition: |
New |
Engine Size: |
250cc |
Product Description

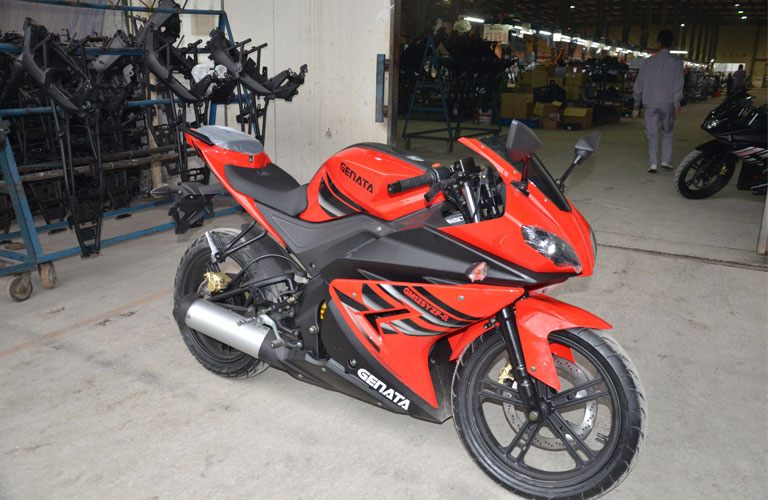

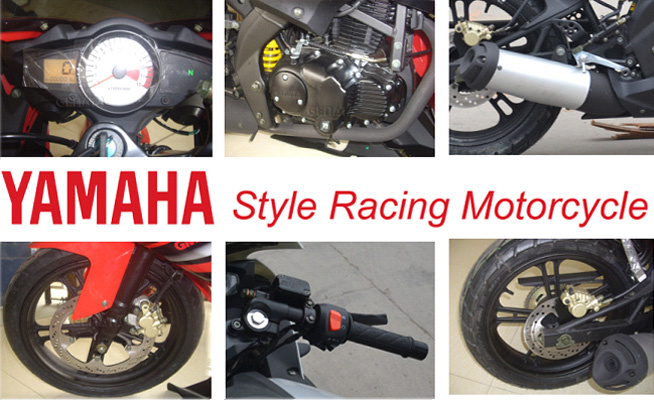

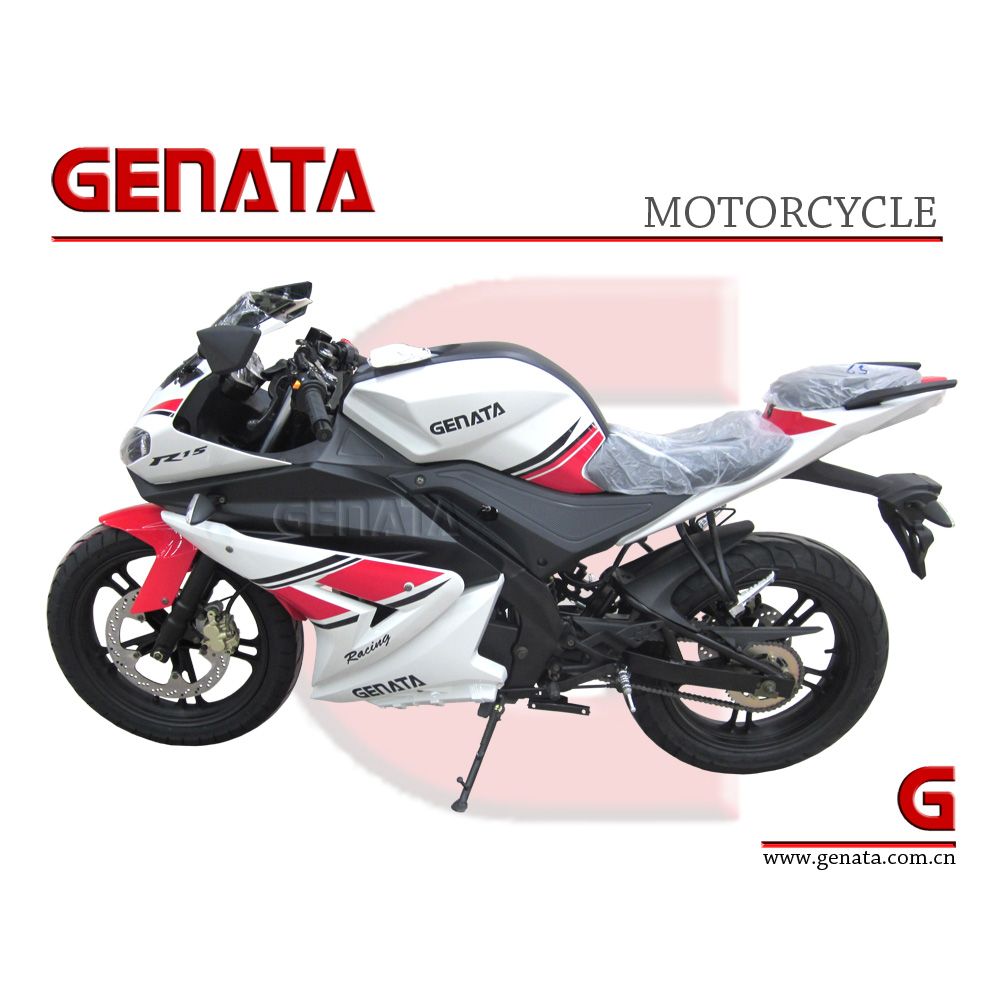

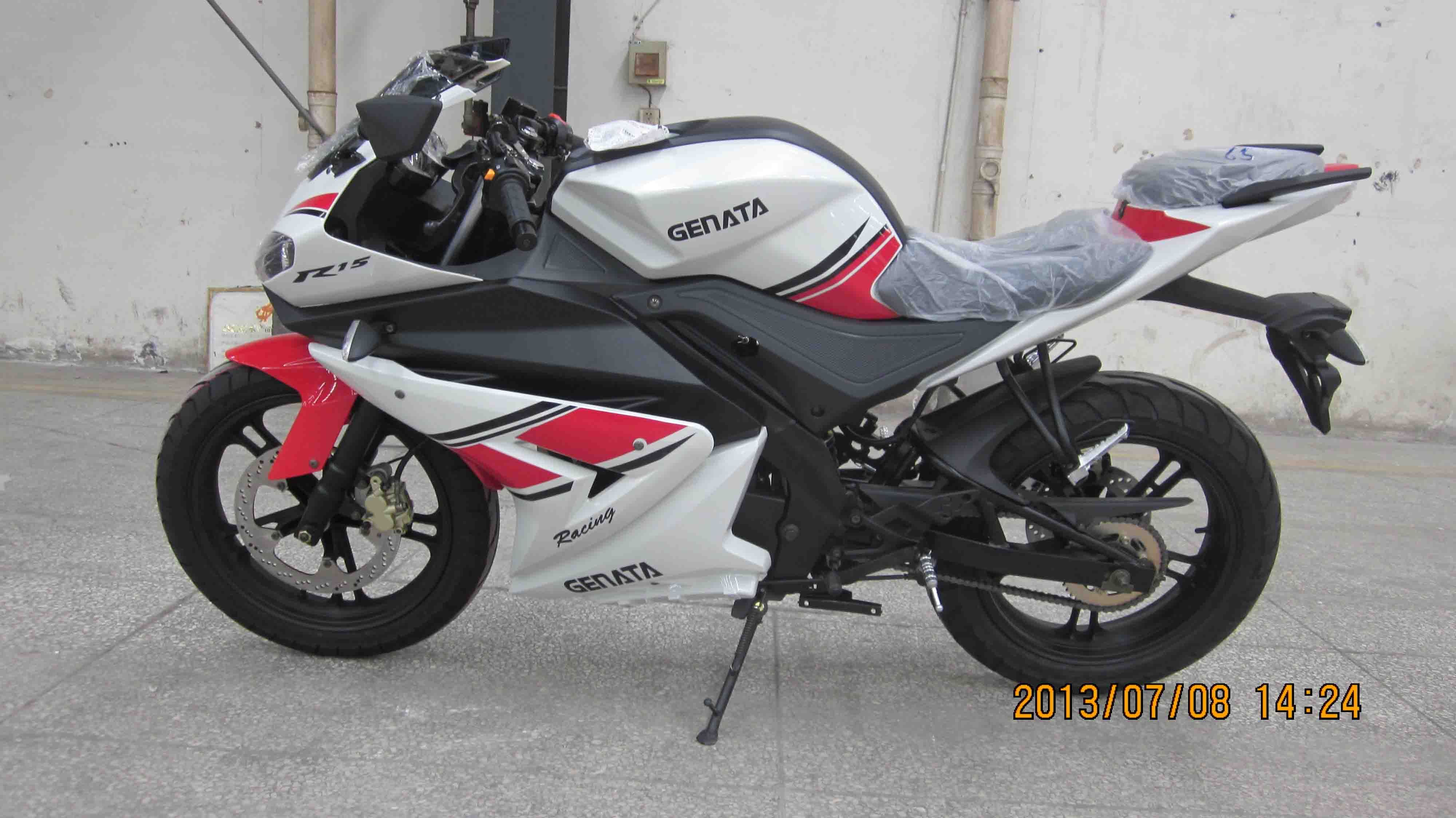

New Design EEC 250CC Sport Motorbike / Motorcycle (GM250YZF-R)Specifications
New Design EEC sport motorbike
Water cooled and air cooled, 4 valve engine for option
250cc/200cc/150cc/125cc are available
New Design EEC Racing motorcycle, Water cooled and oil cooled, 4 valve engine for option
ENGINE |
|
Engine Type : | 165FMM Single Cylinder, 4 Stroke, air-cooling, CBB counter balance shaft engine |
Bore X Stroke ( m m) : | 65.5×66.2 |
Idle speed(r/min) : | 1500 |
Max. Power ( k w/ r / m in) : | 12/7500 |
Max. Torque (n.m/r/min) : | 18.3/6000 |
Displacement(ml) : | 223.4 |
Max. Speed (km/h) : | 125 |
Min. fuel consume ( g/km.h ): | ≤354 |
Ignition: | CDI |
Starting type : | Kick/electric start |
Lubrication : | Pressure splash |
Cooling : | air-cooled |
Battery : | 12V 7AH/ 12N7-3B |
BODY |
|
Gear shift : | International 5 gear |
Brake(F/R) : | Pump disc brake |
Transmission : | Chain drive |
Minimum turn radius(mm) : | 4500 |
Front/Rear tire : | 110/70-17 / 130/70-17 |
Front/Rear wheel : | 2.75-17 / 3.75-17 |
DIMENSIONS AND OTHERS |
|
L ×W × H (mm) : | 1960×730×1060 |
Fuel Tank Capacity (L) : | 16L |
Wheel Base(mm) : | 1340 |
Turning Radius (mm) : | 3150 |
Min Ground Clearance (mm) : | 150 |
Loading Capacity(kg) : | 150 |
Climb Ability(°) : | ≥23 |
Net Weight (kg) : | 128 |
Gross Weight(kg) : | 153 |
The Maximum Velocity : | 120 km/h |
Carton Size : | 1870 x 580 x 1130 |
Container Loading : | 20" GP:24pcs 40" HQ:50pcs CKD:40" HQ:75pcs |
